| Hardware Parameter Q7DER |
| Working voltage |
12V(3S) |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
900~1500mA @ 12V |
| Idle current |
900mA @ 12V |
| Working environment temp. |
-20℃~+60℃ |
| Output |
IP rtsp (1080p 30fps) |
| Local-storage |
SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4 (1080P 25fps) |

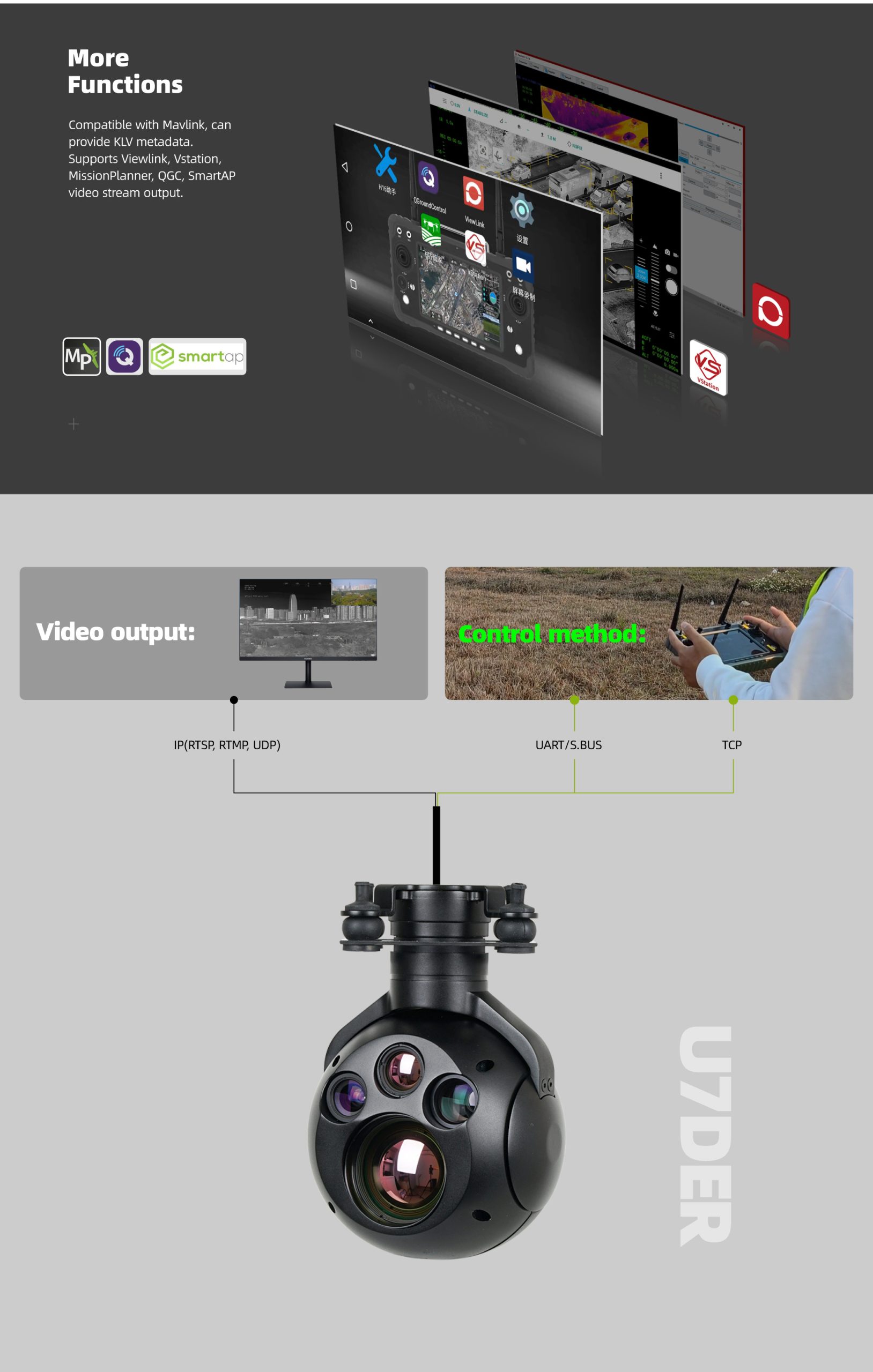

| Control method |
TTL / S.BUS/ TCP |
| Gimbal Spec |
| Angle scope of structure design |
Pitch/Tilt: -60°～120°, Yaw/Pan: ±360°*N |
| Angle scope of software design |
Pitch/Tilt: -45°～90°, Yaw/Pan: ±360°*N |
| Vibration angle |
Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center |
√ |

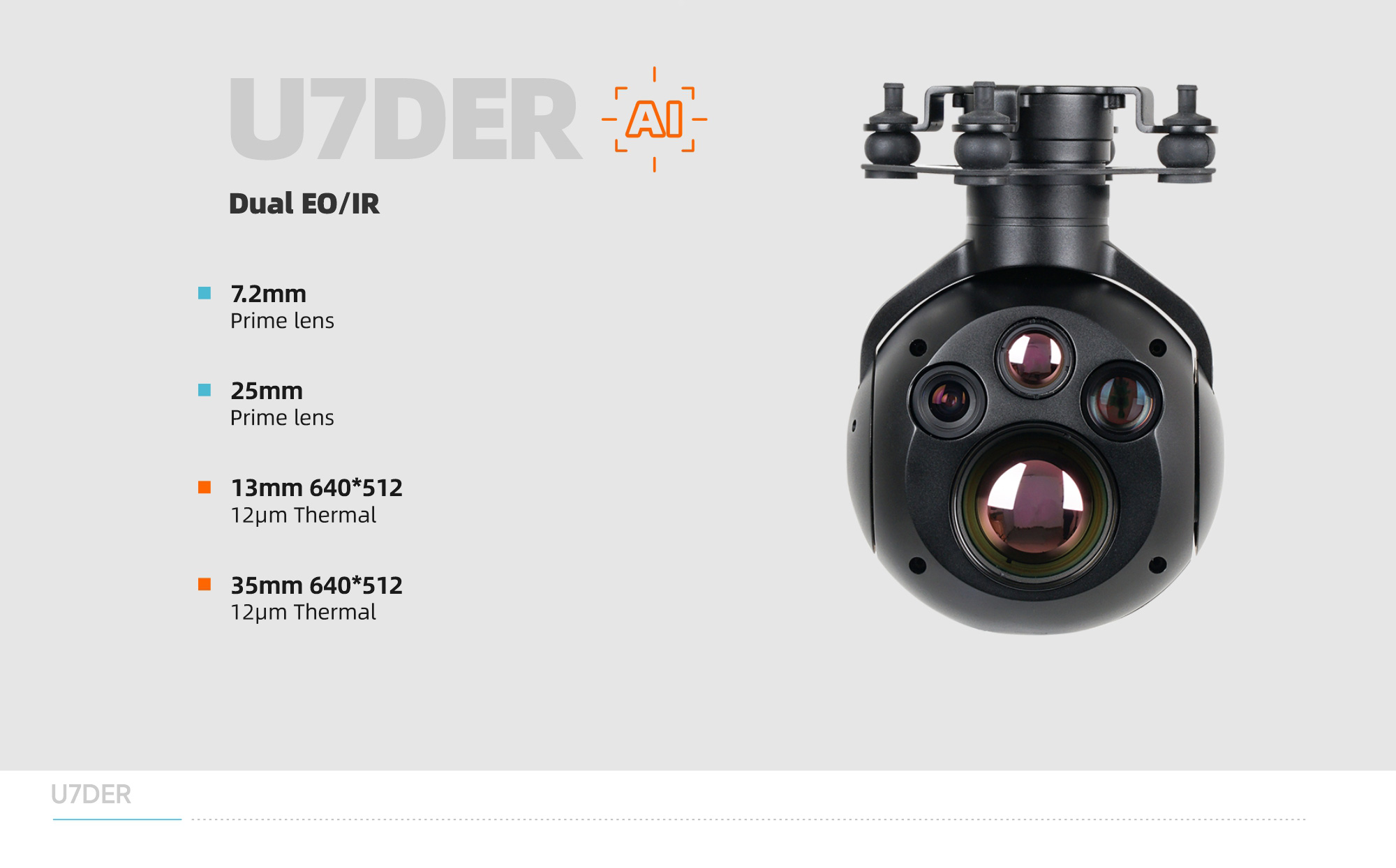

| EO Camera 1 Spec |
| Resolution |
1920*1080 @60fps |
| Focus Length |
7.2mm |
| Angle of View |
42.28°*24.54° |
| EO Camera 2 Spec |
| Resolution |
1920*1080 @60fps |
| Focus Length |
25mm |
| Angle of View |
12.71°*7.17° |

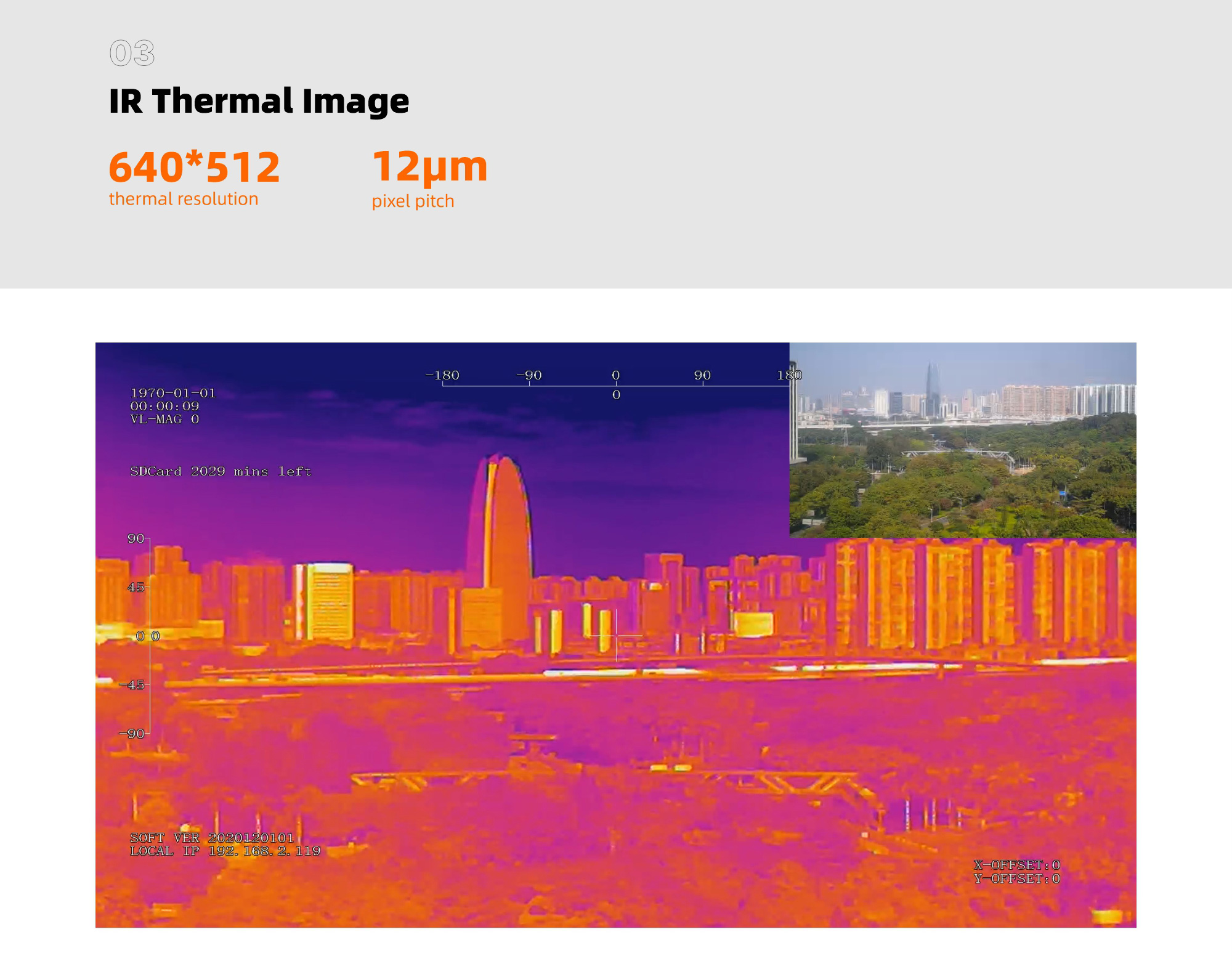

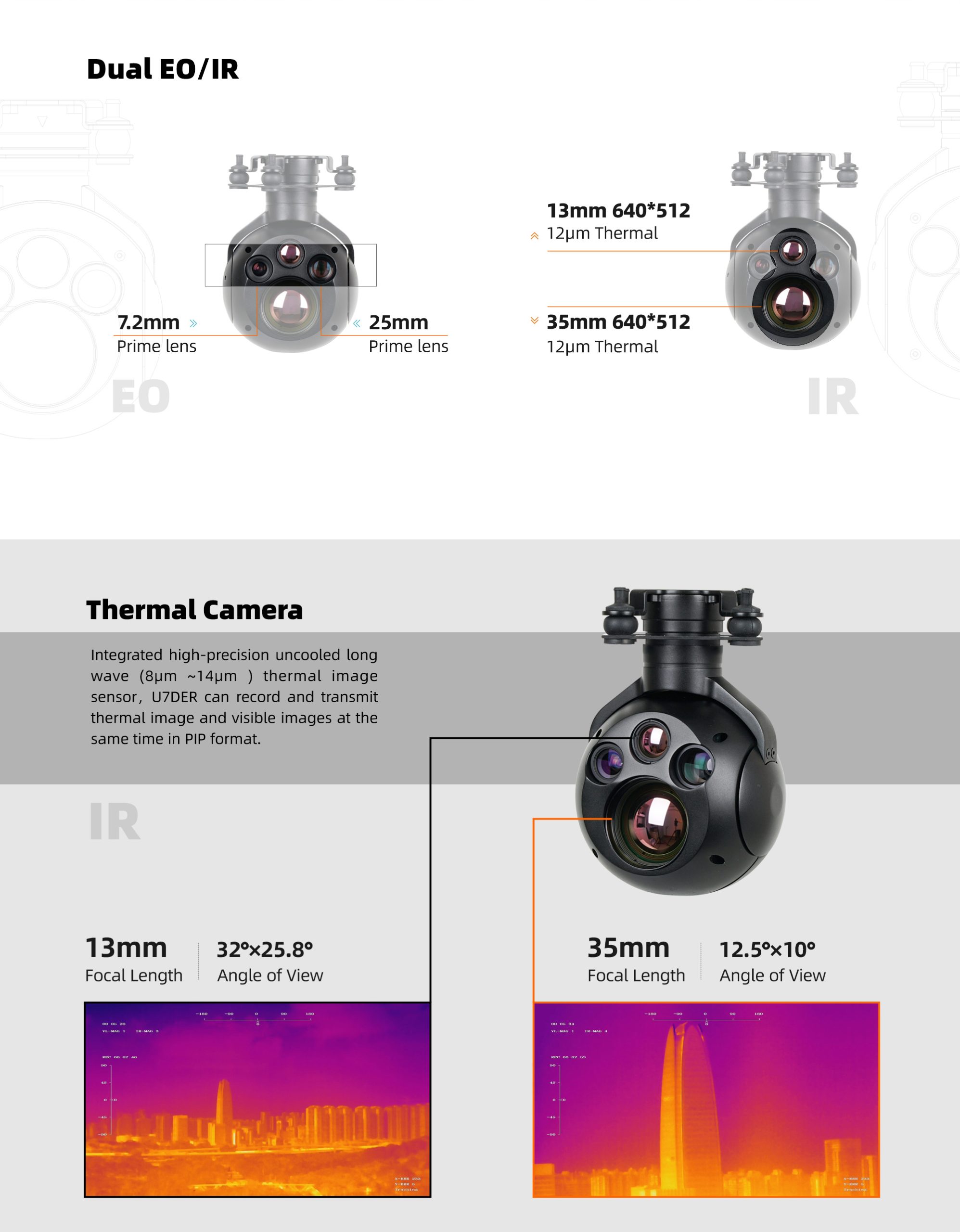

| IR Thermal Imager Spec |
| Angle of View 1 |
32°*25.8° |
| Angle of View 2 |
12.5°*10° |
| Working mode |
Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel size |
12μm |
| Focusing method |
Athermal prime lens |
| Color palette |
White hot, pseudo color |
| Digital zoom |
1x ~ 4x |
| Sync correct time |
Yes |
| EO Camera Object Tracking |
| Update rate of deviation pixel |
60Hz |
| Minimum object contrast |
5% |
| Minimum object size |
16*16 pixel |
| Maximum object size |
128*128 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |
| EO / IR Camera Object Tracking |

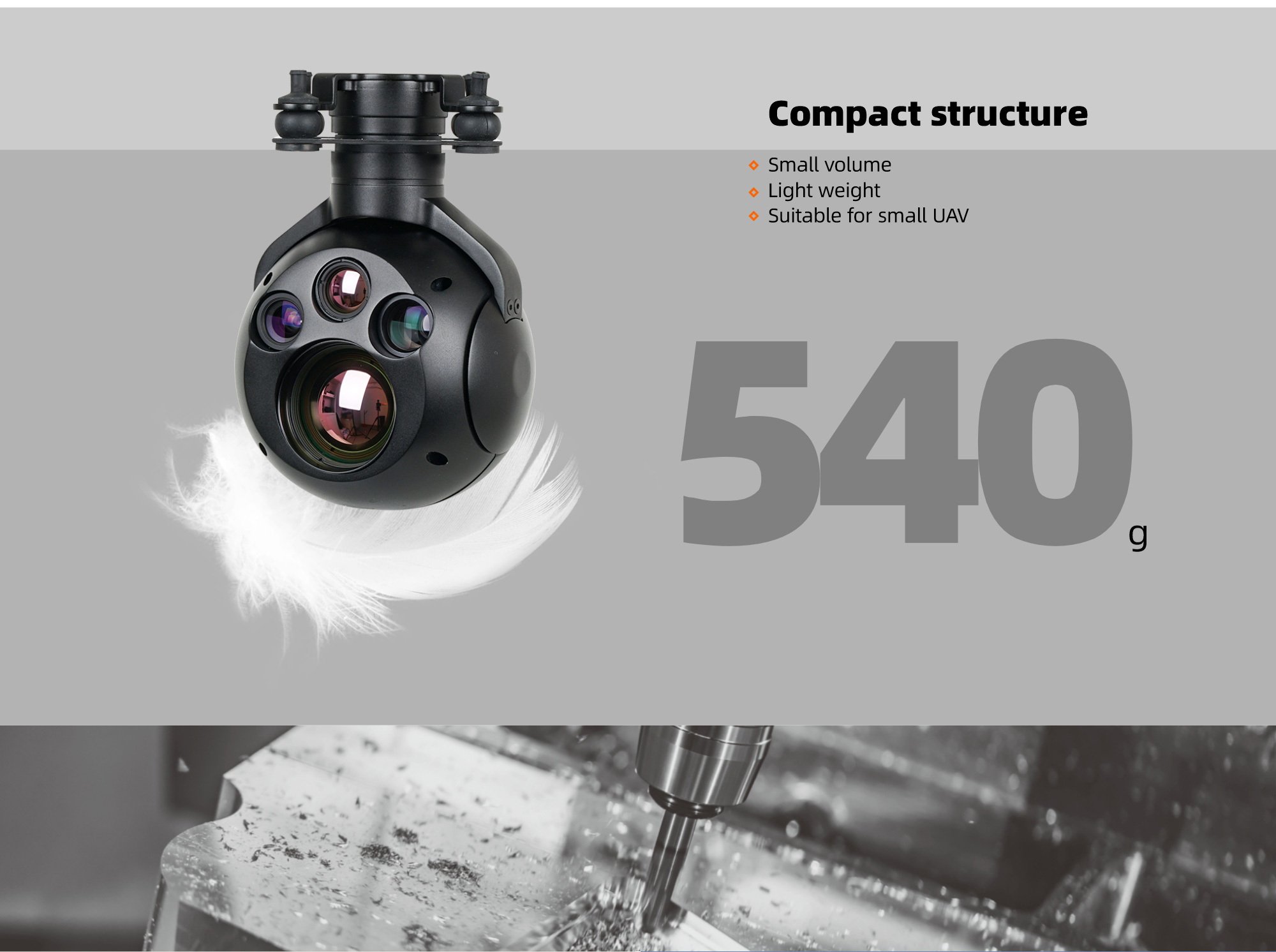

| N.W. |
525g (with damping system) |
| Product meas. |
95.9*86.7*135.6mm |
| Accessories |
1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
525g |
| Package meas. |
167*158*120mm |
