| Overall Specifications |
| Input voltage |
14.8V~25.2V |
| Dynamic current |
1000~1500mA @ 16V |
| Power consumption |
Average 16W, Max 24W |
| Video Output (optional) |
Micro HDMI(1080P 30fps/60fps) / Ethernet：IP (RTSP/UDP 720p/1080p 30fps H264/H265) |
| Control method |
PWM / S.BUS / UART (TTL) / TCP / UDP |
| IP Rating |
IP4X |
| Working environment temp. |
-20℃ ~ +50℃ |
| Local-storage |
TF card (Up to 256G,class 10, FAT32) |
| Picture storage format in TF card |
JPG(1920*1080) |
| Video storage format in TF card |
MP4(1080P@30fps) |
| Product Weight |
about 1076g |

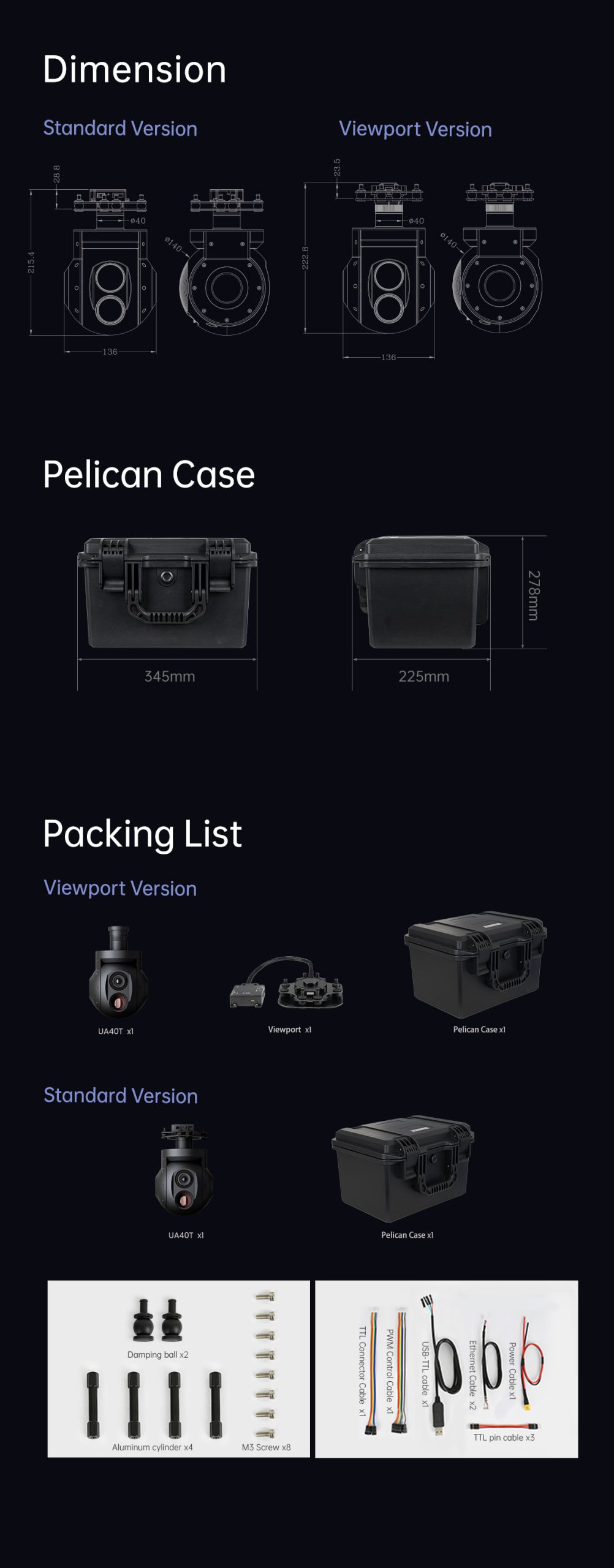

| Product Dimensions |
140*136*213.2mm |
| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt:-40°(Up)～130°(Down), Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range |
Pitch/Tilt: -30°(Up)～125°(Down), Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Yaw: ±0.02° |
| One-key to center |
√ |
| EO Camera spec |
| Imager Sensor |
1/2.8″ CMOS Sensor |
| Picture quality |
Full HD 1080 (1920*1080) |
| Effective pixel |
2.13MP |
| Lens optical zoom |
40x, F=4.25~170mm |
| Digital zoom |
Off / MAX x2 ~ x32 |
| Min object distance |
0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Angle of View (D, H, V) |
Wide: 73.80° / 66.35° / 39.98° |
| |
Tele: 2.16° / 1.90° / 1.11° |
| AF Mode |
Auto / Manual |
| Iris |
Close ~ F1.6 |
| Shutter speed |
1/1 ~ 1/30,000 sec |
| Sync system |
Internal |
| S/N ratio |
more than 50dB |
| Min illumination |
Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux |
| |
Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux |
| Exposure control |
Auto / Iris. Priority / Shut. Priority / Manual |
| Gain Control(AGC) |
0 ~ 10 steps |
| White balance |
Auto / Manual / Indoor / Outdoor |
| Back Light |
Off / BLC / HLC / WDR |
| Defog |
Off / Manual / Auto |
| IR Thermal Imager Spec |
| Focus Length |
35mm |
| Horizontal FOV |
12.5° |
| Vertical FOV |
10.0° |
| Diagonal FOV |
16.0° |

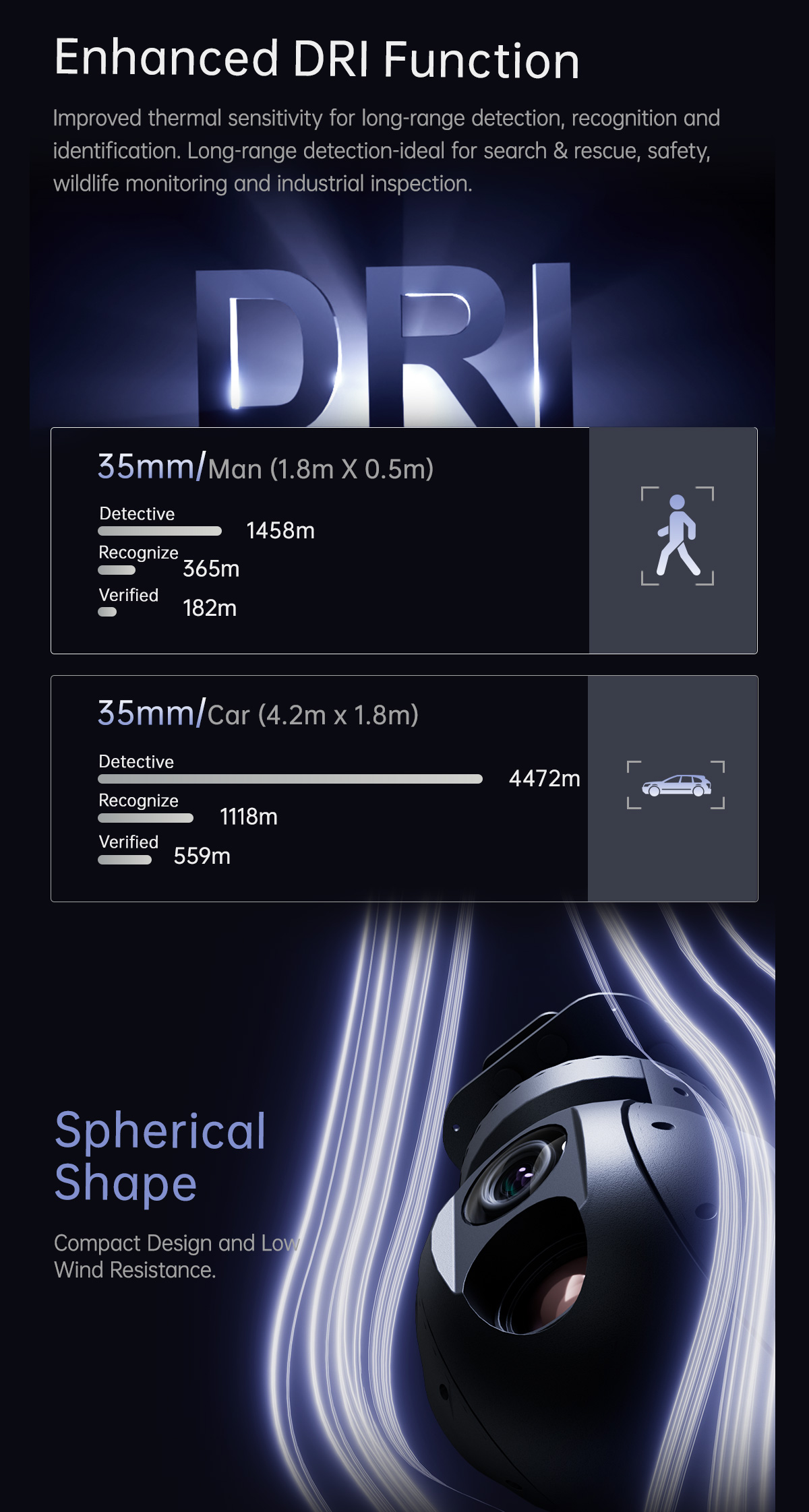

| Detective Distance (Man: 1.8×0.5m) |
1458 meters |
| Recognize Distance (Man: 1.8×0.5m) |
365 meters |
| Verified Distance (Man: 1.8×0.5m) |
182 meters |
| Detective Distance (Car: 4.2×1.8m) |
4472 meters |
| Recognize Distance (Car: 4.2×1.8m) |
1118 meters |
| Verified Distance (Car: 4.2×1.8m) |
559 meters |
| Working mode |
Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel pitch |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤50mK@25℃,F#1.0 |
| Color palette |
White hot,Black hot, Iron Red |
| Digital zoom |
1x ~ 8x |
| Radiometric function(optional) |
Thermometry measuring mode：point anywhere measurement, selected box measurement |
| Thermometry range optional：-20℃~+150℃, +100℃~+550℃ |
| Thermometry accuracy: ±3℃ or +3% of reading (whichever is greater) @ ambient temperature -20℃~60℃ |

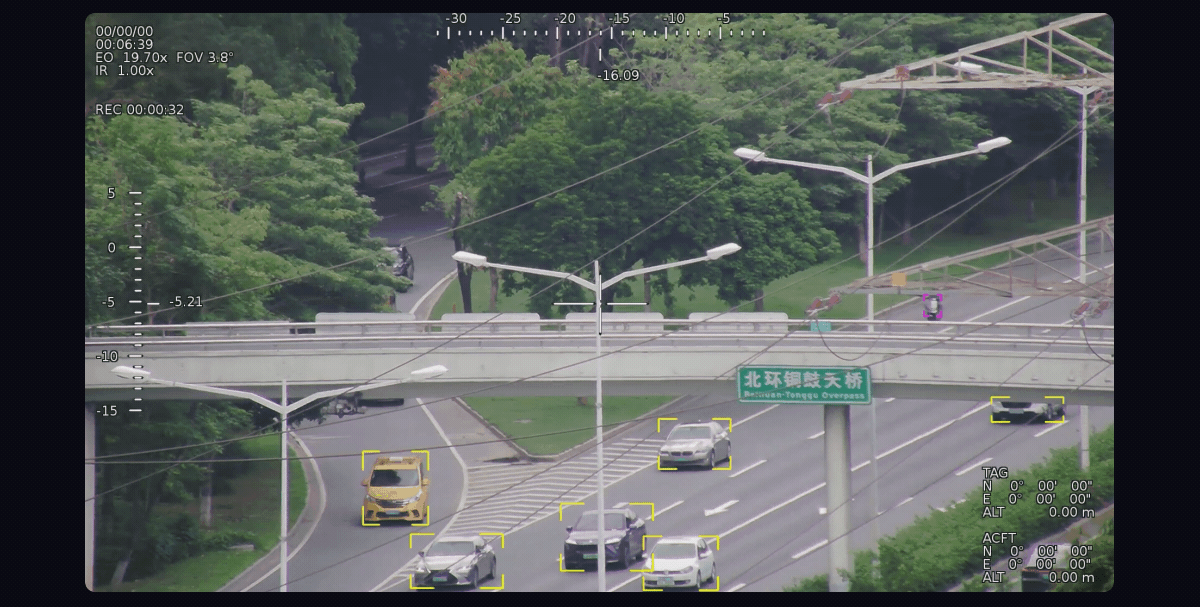

| Camera Object Tracking |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |
| AI auto-zoom |
Yes |
| Camera AI Performance |
| TOPS |
6T |
| Targets type |
Car and human |
| Simultaneous detection quantity |
≥ 10 targets |
| Min contrast ratio |
5% |
| Min target size |
5×5 pixel |
| Car detection rate |
≥85% |
| False alarm rate |
≤10% |
| Features |
| OSD |
Display the gimbal’s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, date and time |
| Geotagging |
Display time and GPS coordinate in picture exif |
| Card reading online |
HTTP read pictures or videos |
| KLV (UDP) |
Card recording or Viewlink video playback |
| ArduPilot / PX4 |
Support(Mavlink protocol )
Optional: Support Ardupilot Follow me feature |
| Video switching |
EO+IR /IR+EO /EO /IR |
| Dual video stream output (optional) |
Support(EO and IR two stream output, notes: unable to record once the dulal video stream output activated) |
