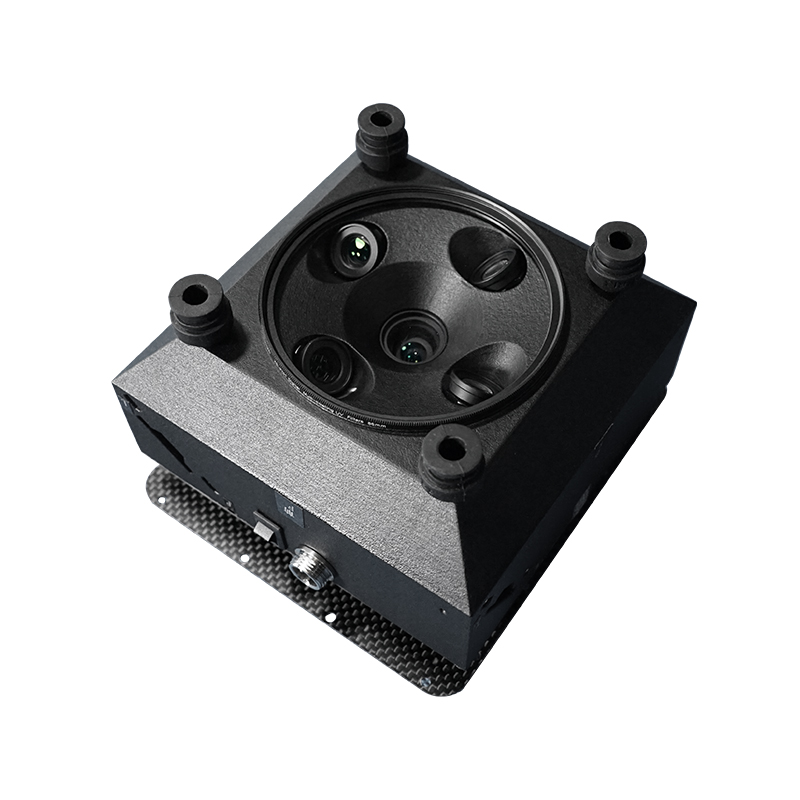

MVO-120S 3D Oblique Camera Mapping and Surveying with Geo Tagging Function

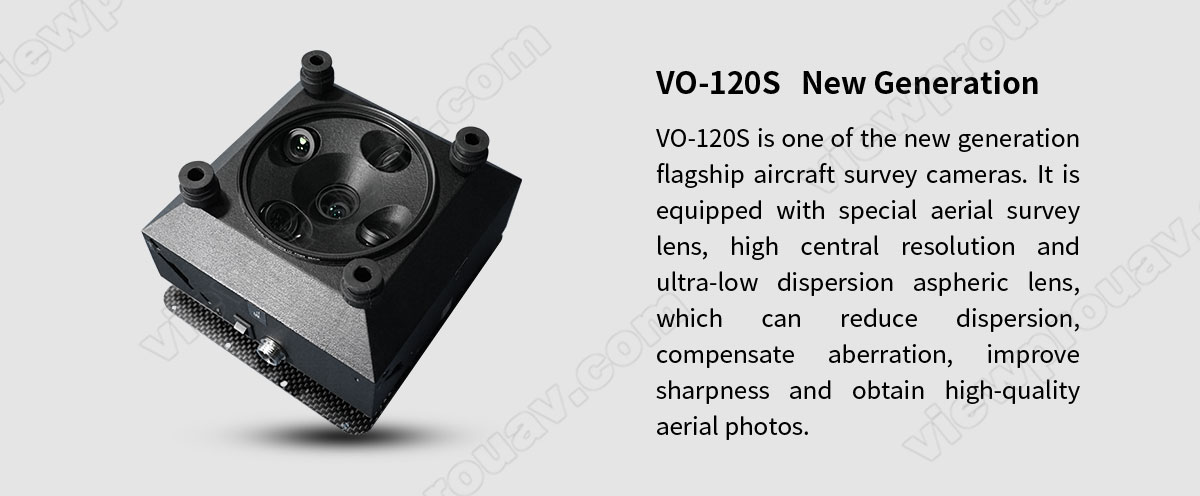

Designed for profession mapping and survey missions. Support 3D modelling post processing.

Model No.	VO-120S

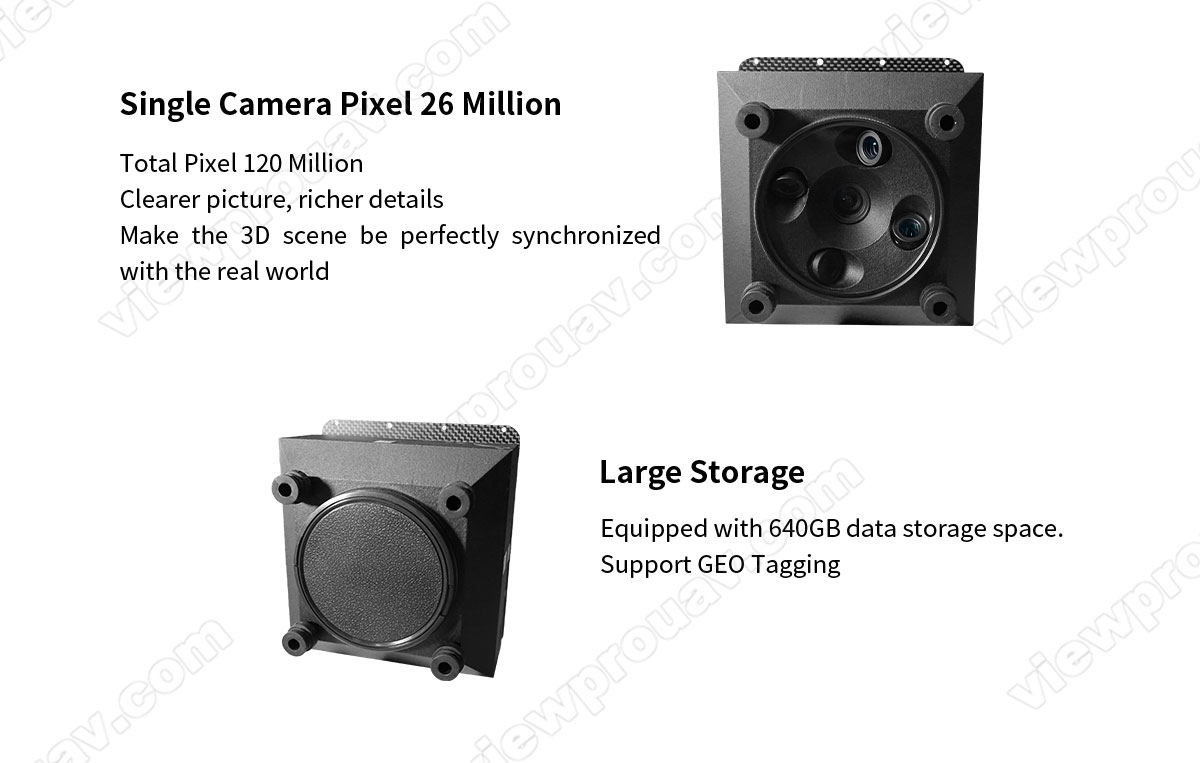

Total Pixel	24MP*5 = 120MP
Resolution	6000*4000 for single picture
Sensor	APS-C CMOS (23.5X15.6mm)
Lens Size	Orthographic 125.2mm + Oblique 435.7mm
Oblique Lens Angle	45°
Shutter Triggering	High/low level signal (default) or PWM signal
Shutter Speed	30-1/8000
Min Exposure Time	0.8s
Data Read/Storage	USB or SD card (max 128G*5=640G)

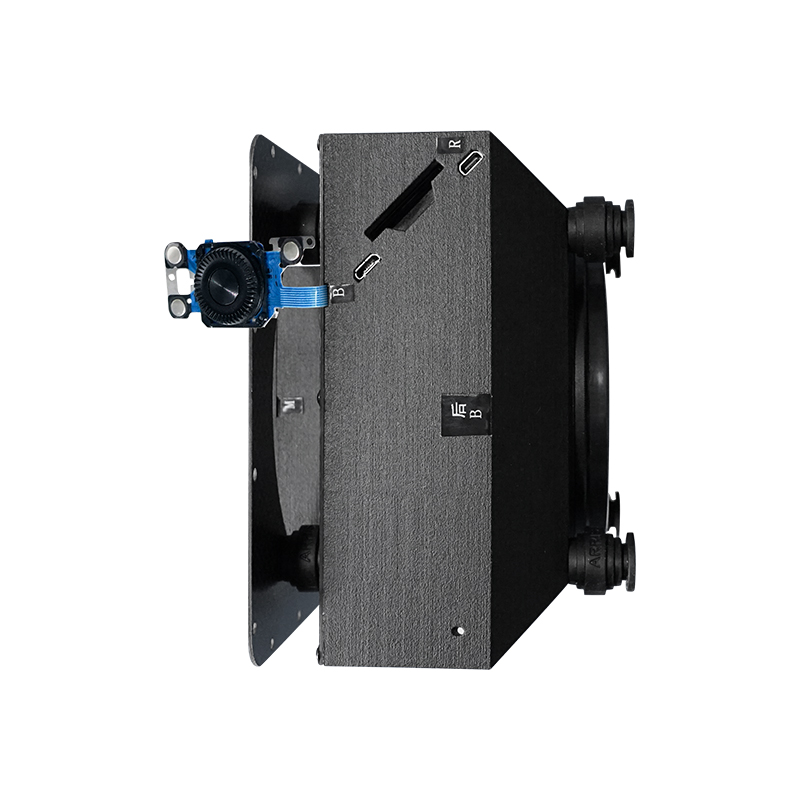

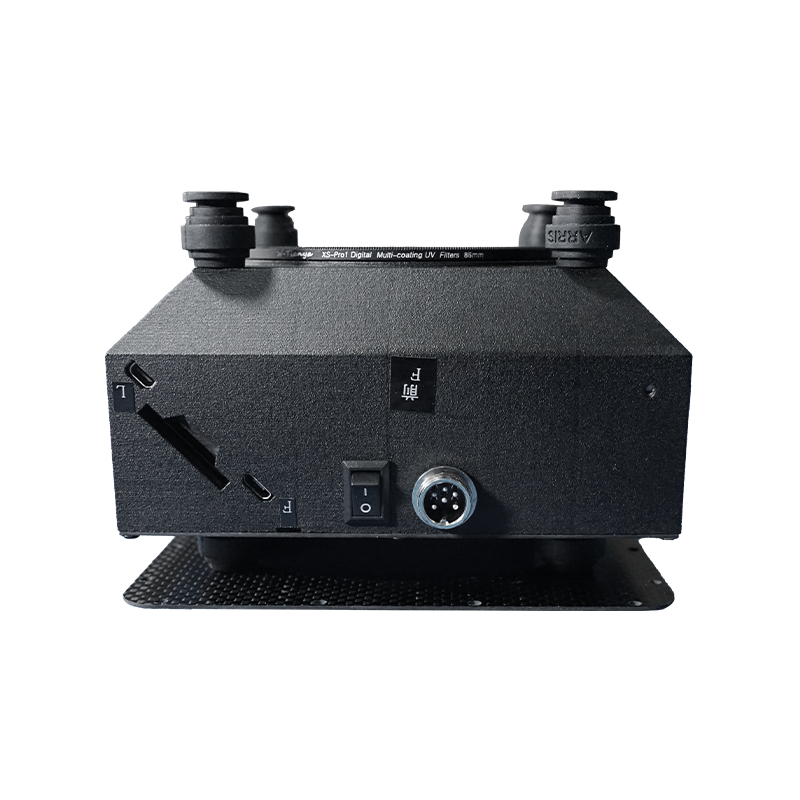

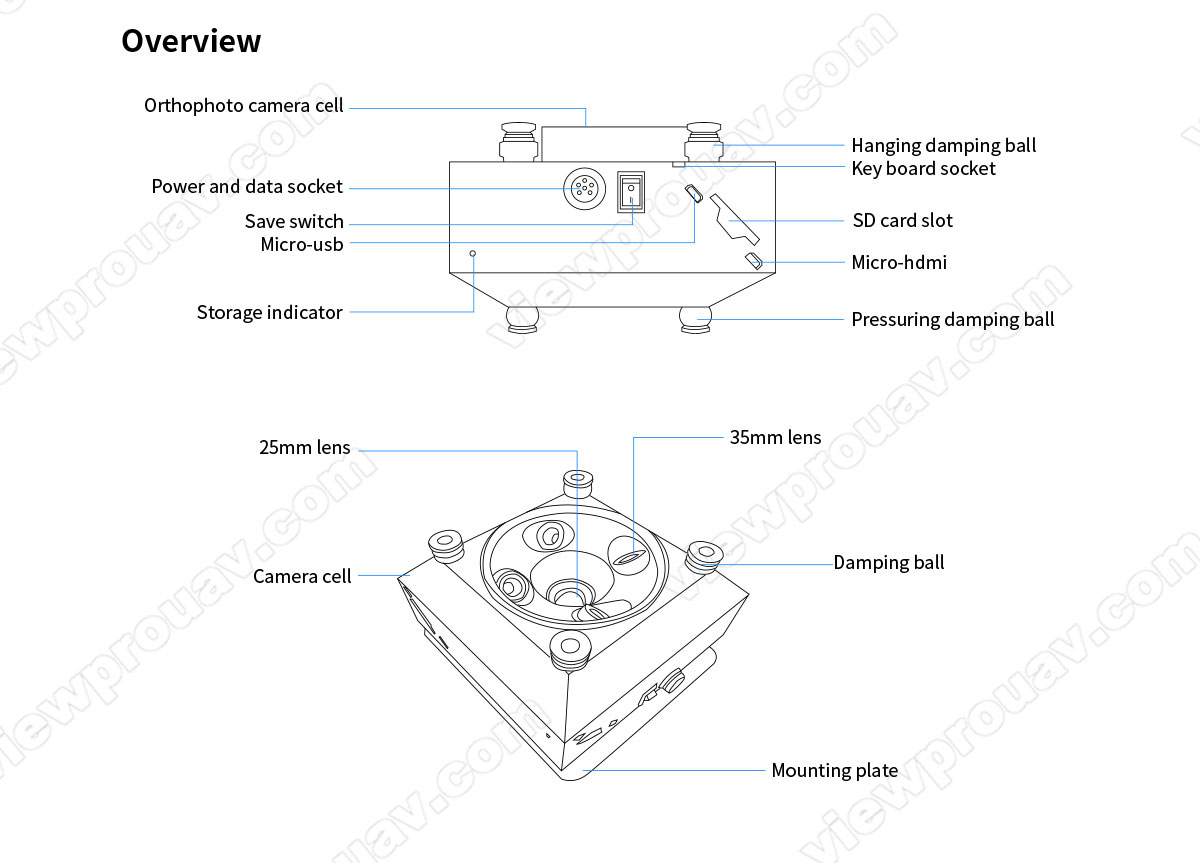

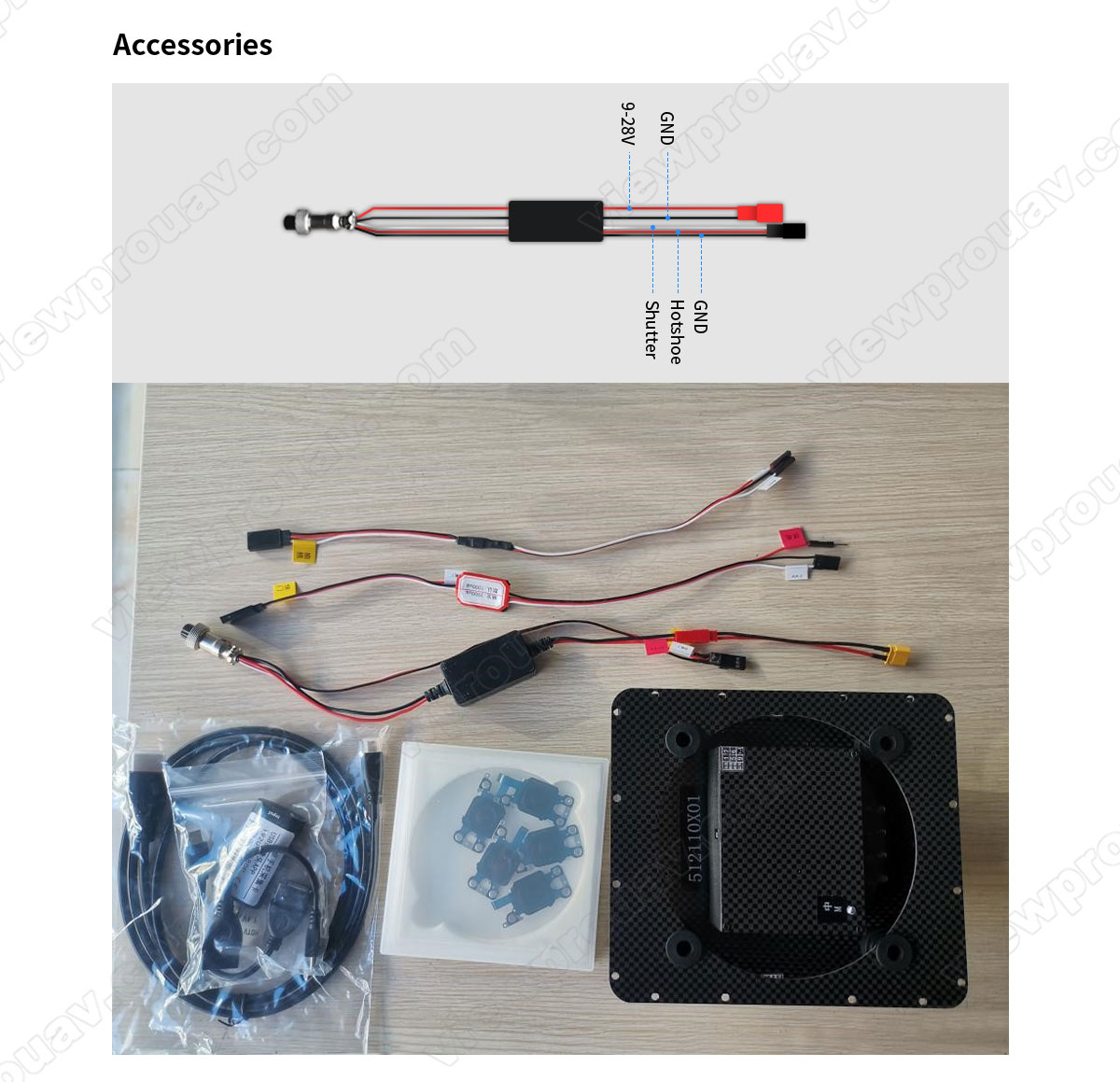

Interfaces	SD card slot, HDMI, USB, Hot shoe, aviation plug

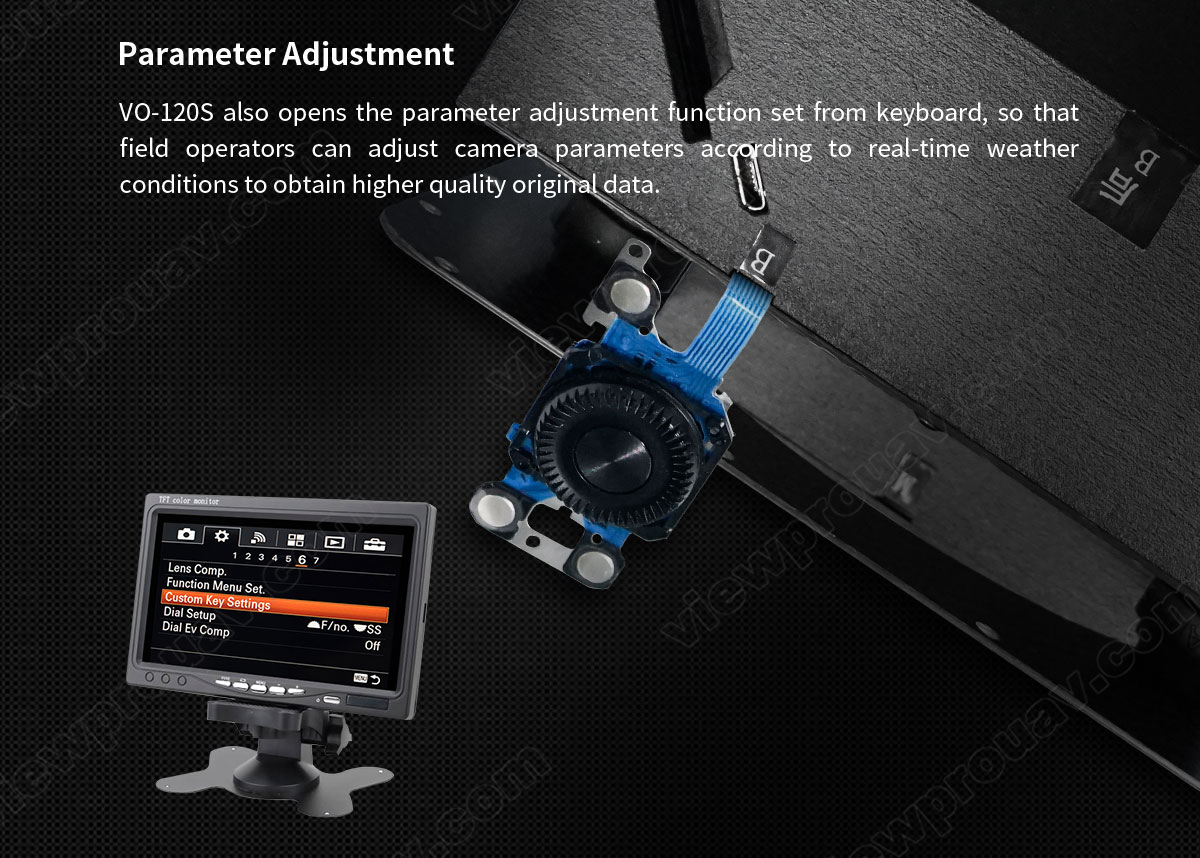

Parameter Setting Methods	USB or button
Power Supply	4S-7S (9-28V)
Working Environment	-20°C – 50°C

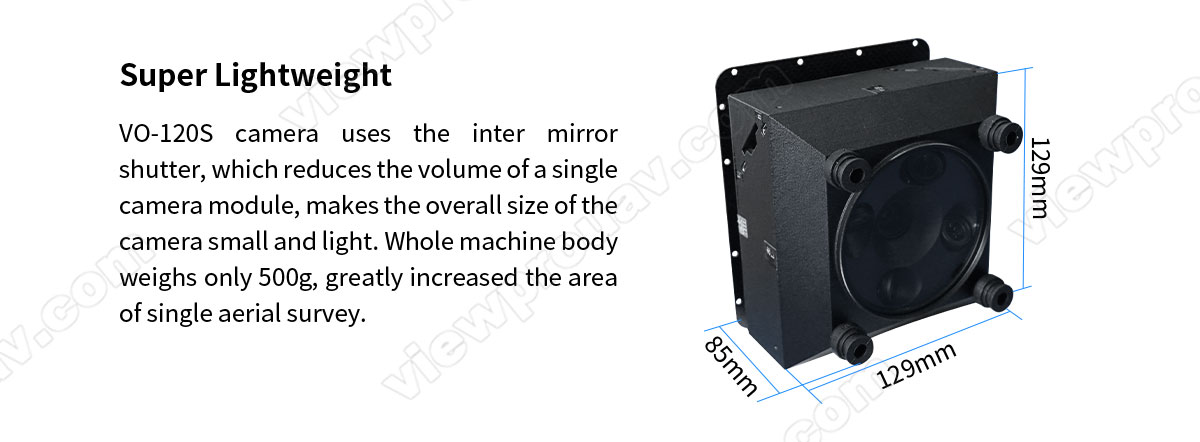

Camera Dimension	12912985MM
Net Weight	650g

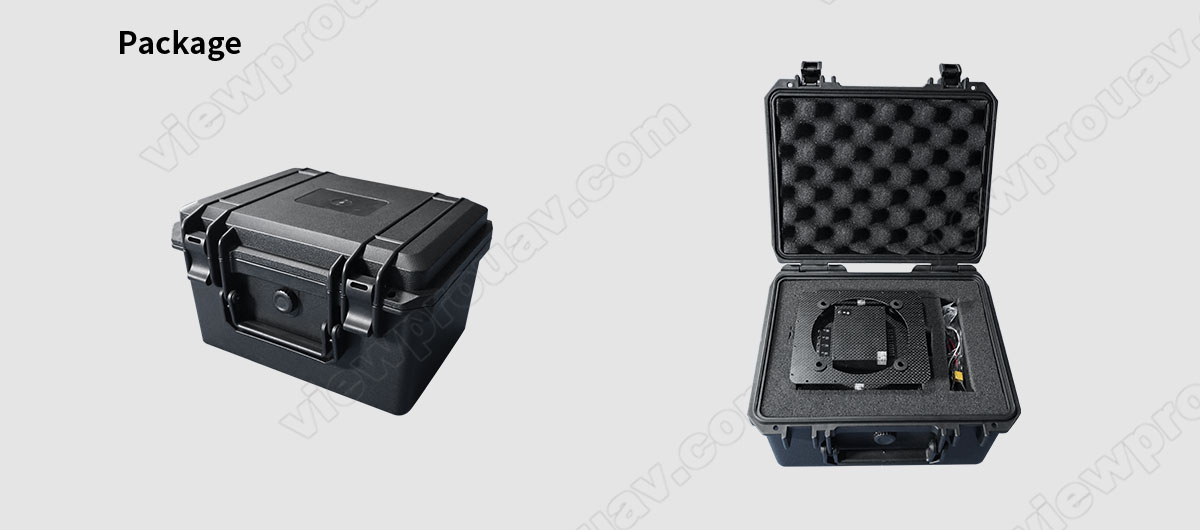

Package Dimension	302520cm
