MZ10TL-DJI 3-axis gimbal camera based on DJI PSDK, comptible with DJI drones M200 / M210 / M210RTK. Controlled by APP DJI Pilot
China Moneypro

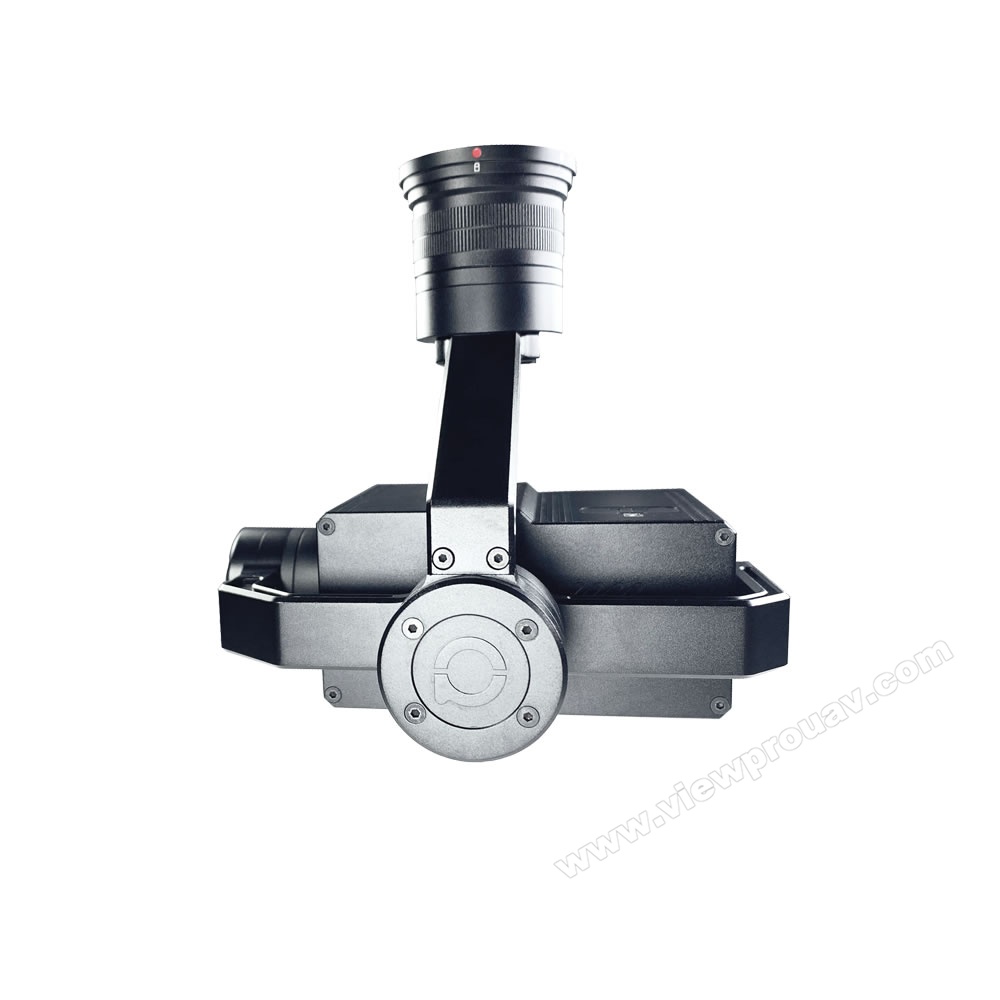

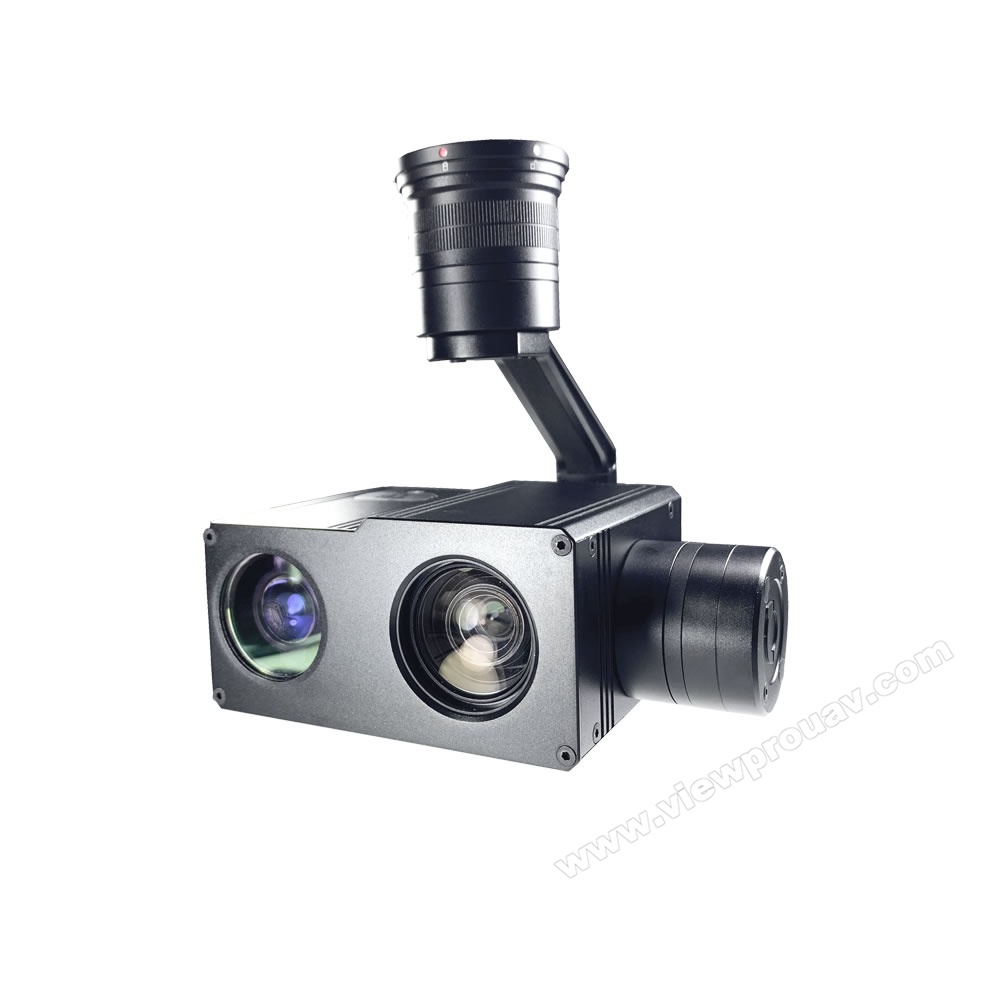

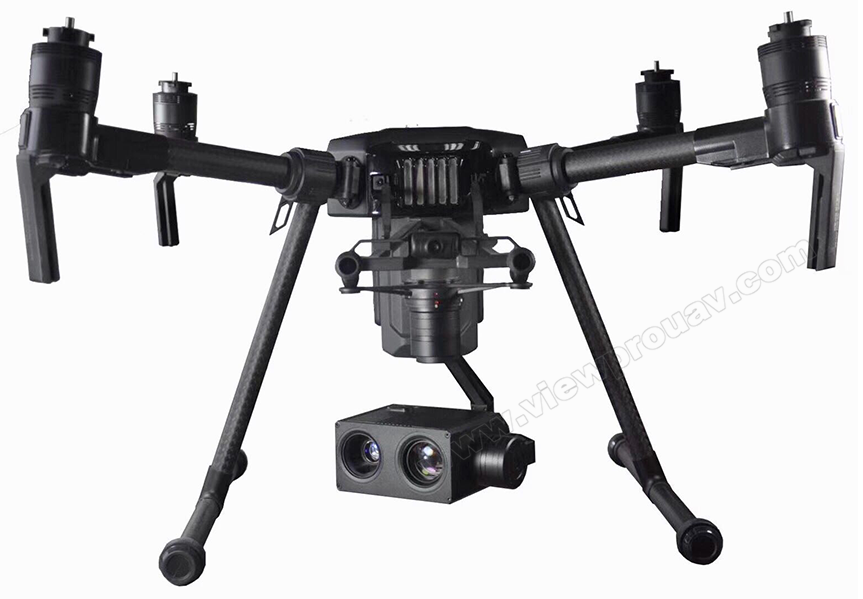

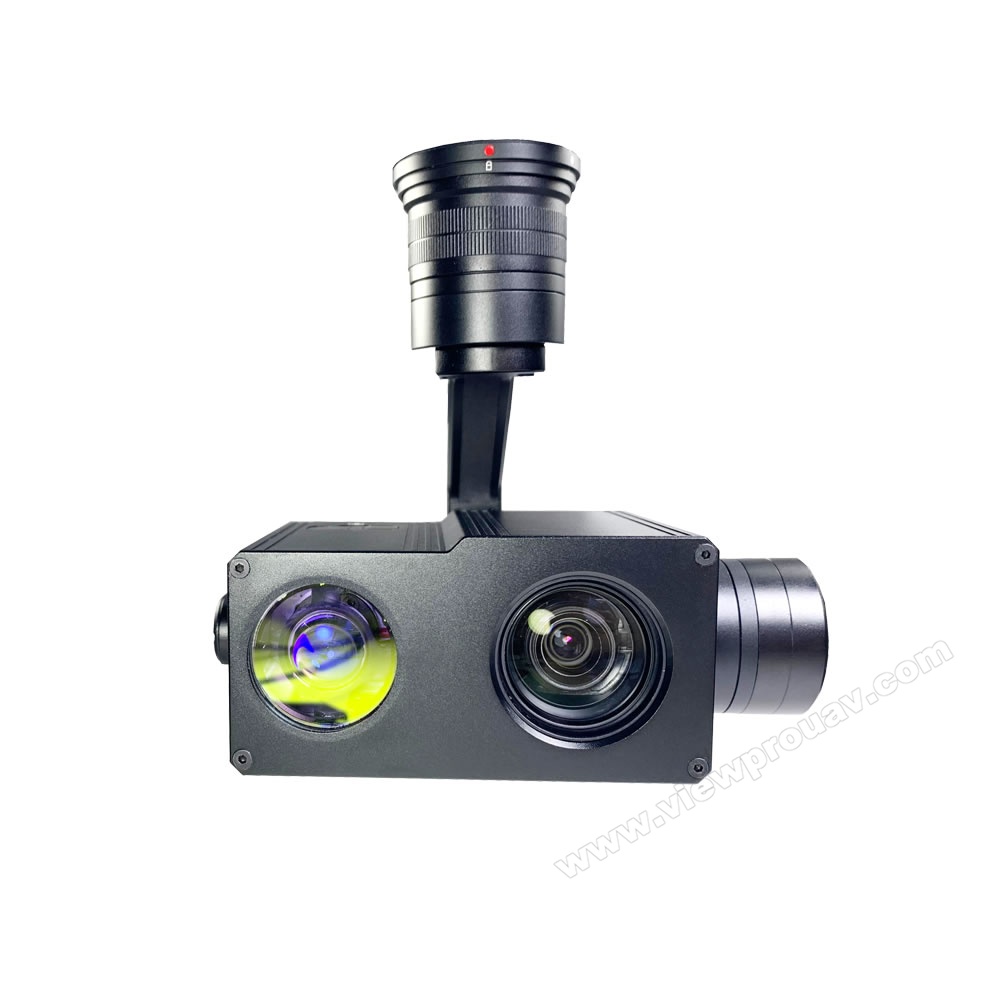

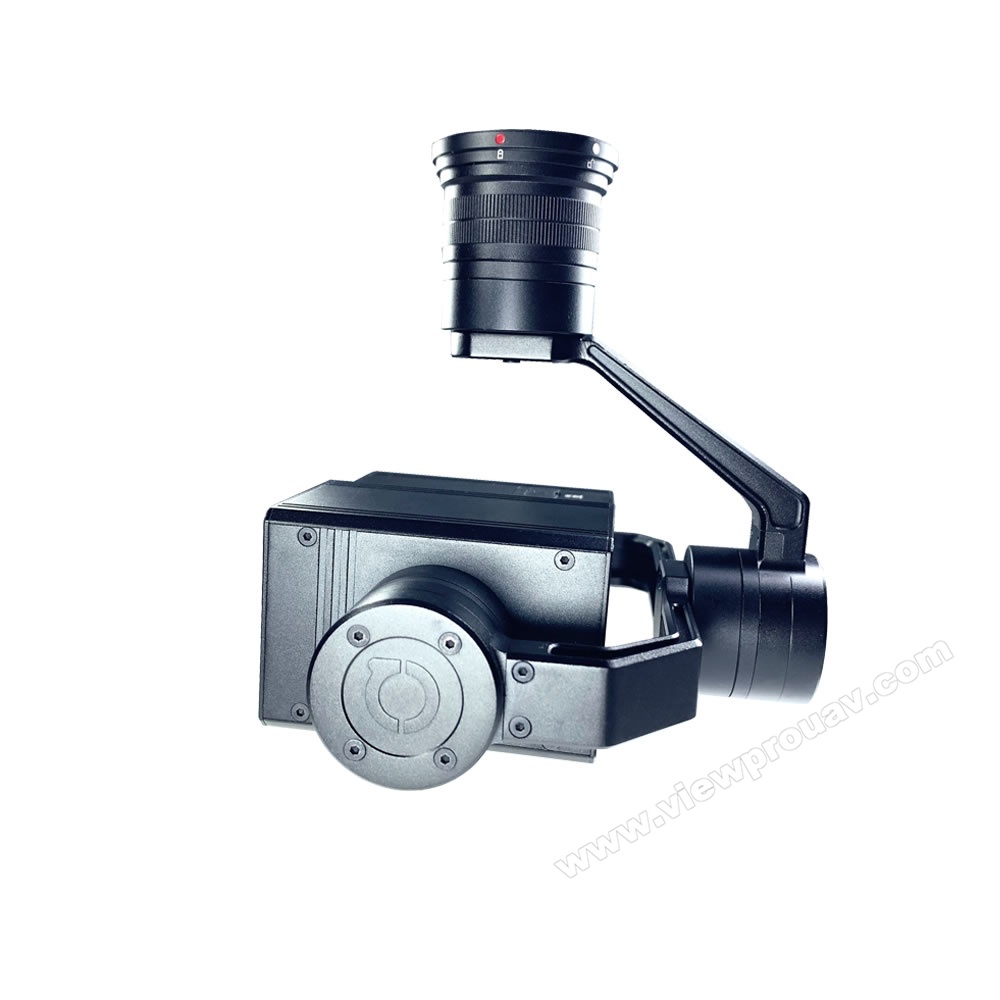

Z10TL-DJI is a high-precision professional 3-axis gimbal camera which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. It’s developed based on DJI PSDK, comptible with DJI drones M200 / M210 / M210RTK. Controlled by APP “DJI Pilot”, it can fulfill many powerful functions, such as: shoots or records with 10 times optical zoom, object tracking, IR laser night vision and so on. The speed of Z10TL gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate. Fast mode for wide end, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly.
10x Optical Zoom Camera, 300m IR Laser Light
Powered by 1/2.9″ CMOS, with color 0.05lux@F1.6, ultra low illumination, Z10TL can still clearly display image features in utter poor light environment. 2mega effective pixel and 1080p HD image quality, combined with powerful optical zoom technology, and 300 meter laser light supplement, the observation range is up to 300 meters even at a pitch black night, which can meet the application requirements of various domains.

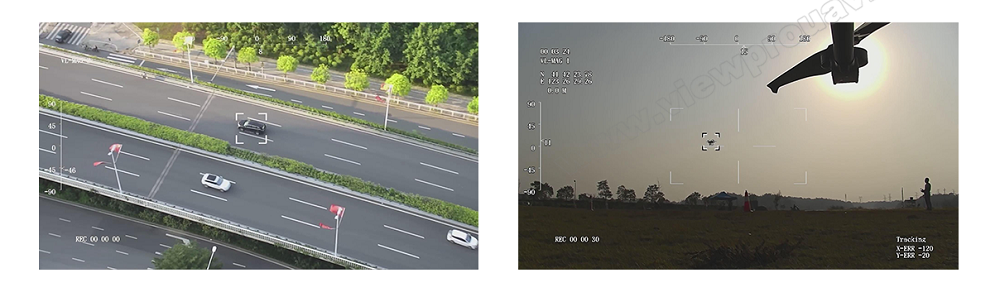

Camera Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.
Applications
Mainly supply in military and law enforcement, fire-fighting, surveillance and search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
