| Hardware Parameter |
| Model No. |

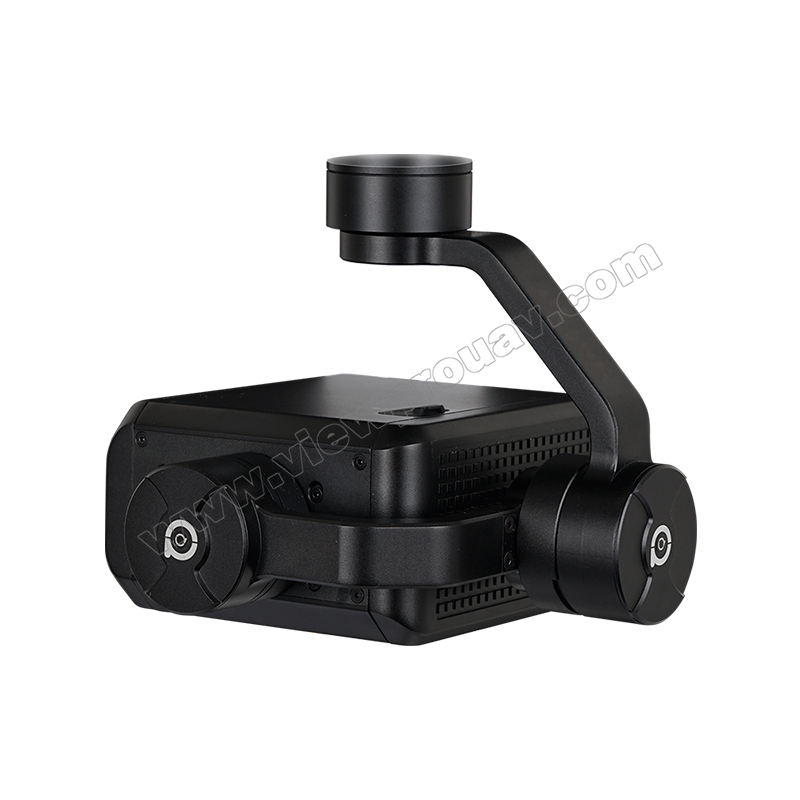

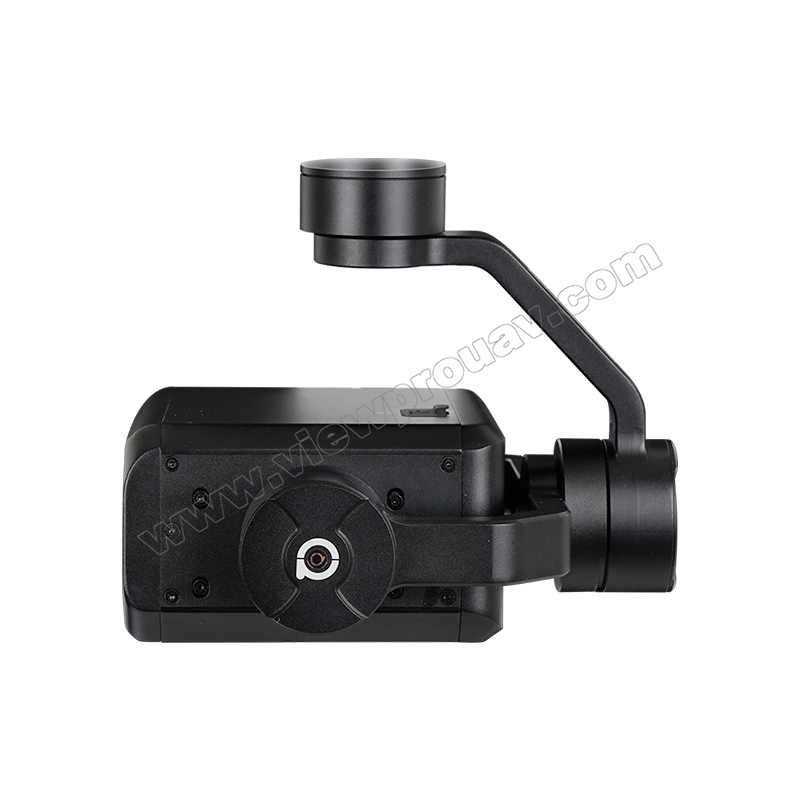

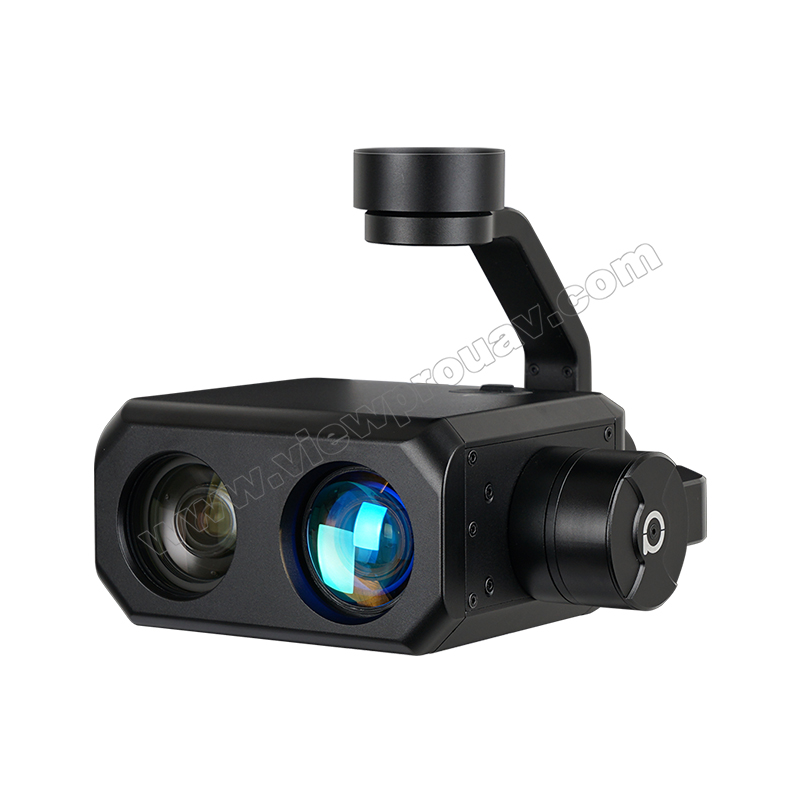

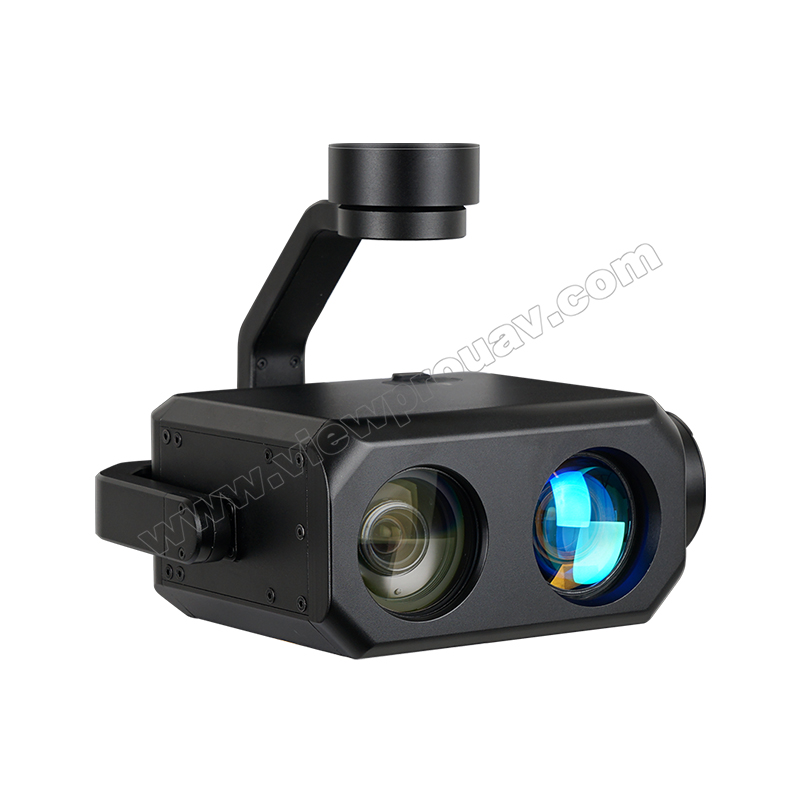

Z30TL |
| Working voltage |
12V |
| Input voltage |
3S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
800~2000mA @ 12V |
| Idle current |
800mA @ 12V |
| Working environment temp. |
-20℃ ~ +60℃ |
| Output |
micro HDMI(1080P 60fps) / IP (720p/1080p 25fps/30fps) |
| Local-storage |
SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4 (1080P/720P 25fps/30fps) |
| Control method |
PWM / TTL / S.BUS/ TCP(IP output version) |
| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -50°～110°, Roll: ±50°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range |
Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center |
√ |
| Camera Spec |
| Imager Sensor |
SONY 1/2.8″ “Exmor R” CMOS |
| Picture quality |
Full HD 1080 (1920*1080) |
| Effective pixel |
2.13MP |
| Lens optical zoom |
30x, F=4.3~129mm |
| Digital zoom |
12x (360x with optical zoom) |
| Min object distance |
10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle |
1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| Sync system |
Internal |
| S/N ratio |
more than 50dB |
| Min illumination |
Color 0.01lux@F1.6 |
| Exposure control |
Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain |
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed |
1/1s to 1/10,000s, 22 steps |
| Backlight compensation |
Yes |
| Aperture control |
16 steps |
| Defog |
Yes |
| OSD |
Yes |

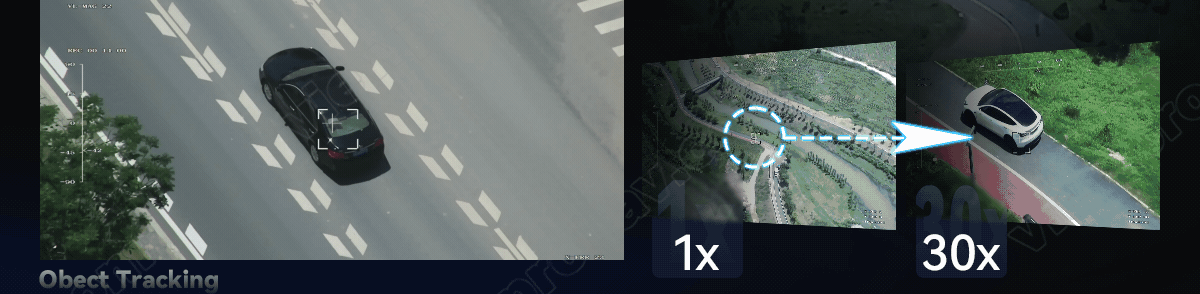

| EO Camera Object Tracking |
| Update rate of deviation pixel |
50Hz |
| Output delay of deviation pixel |
5ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
32*32 pixel |
| Maximum object size |
128*128 pixel |
| Tracking speed |
32 pixel/frame |
| Object memory time |
100 frames (4s) |
| The mean square root values of pulse noise in the object position |
< 0.5 pixel |
| Laser Light Supplement |
| Effective range |
500 meters |
| Light wave length |
850 ± 10nm |
| Illumination angle |
power zoom synchronously, 70°~2.0° adjustable |
| Zoom time |
≤3s (wide end – tele end) |
| Power consumption of laser chipset |
2 ± 0.3W |
| Illumination angle |
Tele end 2.0°: effective range 500 meters, spot diameter ≤18 meters
Wide end 70°: effective range ≥ 50 meters |
| Working voltage |
DC12V ± 10% |
| Power consumption in total |
< 11W |
| Packing Information |
| N.W. |
778g(Viewport version) |
| Product meas. |
141.9*153.7*158mm / 141.9*153.7*163.4mm(Viewport version) |
| Accessories |
1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion |
| Package meas. |
360*300*250mm |
