MZT230TA Two-Axis Three-Light Turntable
The MZT230TA optoelectronic turntable consists of an uncooled infrared thermal imager, a 30x continuous zoom visible light camera, a laser rangefinder, a two-axis servo stabilization platform, and an image tracker. It features lightweight construction, high stability and accuracy, and high integration, and can be applied to unmanned vehicles, armored vehicles, and sentry towers to perform day and night reconnaissance, surveillance, and target location tasks.
The photoelectric turret uses an infrared thermal imager and a visible light camera to detect, identify, and track ground targets around the clock, and outputs infrared and visible light video in real time for mission personnel to view.
Photoelectric turrets are mainly used in scenarios such as air detection, ground detection, border and coastal defense, high-point monitoring, and border sentry posts.
I. Photos of the actual product

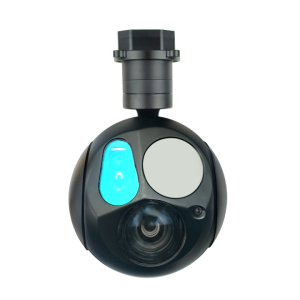

Figure 1 Product Image
II. Product Functions
a) It has the function of automatic identification and tracking of typical targets;
b) It has self-testing and fault reporting functions;
c) It has a 30x optical zoom function for visible light ;
d) Possesses infrared and visible light band detection capabilities, and can output infrared and visible light images;
e) Visible light has optical zoom, autofocus, manual focus and low light functions;
f) The infrared sensor has electronic amplification and color palette switching functions;
g) Equipped with laser ranging function;
h) Possesses the ability to move with two degrees of freedom: azimuth and pitch;
i) It has multiple working modes such as automatic search , manual search, follow-up, automatic tracking, and favorites;
j) In manual search mode, it has the function of receiving control station commands and completing turret operations;
k) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;
l) It has the function of locking /unlocking the target, and after locking the target, the turret outputs an image with a tracking frame;
m) It has an automatic target tracking function, which can automatically track targets and is resistant to natural interference;
n) It has a memory tracking function, which allows the target to be recaptured in a short time after being briefly lost;
o) It has the function of adjusting the gate size;
p) It has a tracking point switching function;
q) The target coordinates can be calculated based on laser ranging and vehicle attitude information;
r) It has target positioning function;
s) Airtight optical cabin;
t) It has photo and video recording functions .
III. Mounting Platform
Unmanned vehicles, manned vehicles, various vehicle-mounted platforms, and various types of ships.
IV. Main Technical Parameters
| model | ZT230TA |
| Infrared thermal imager | |
| Detector type | Uncooled focal plane detector |
| Operating band | 8μm～14μm |
| Detector resolution | 640×512 |
| Pixel size | 12μm |
| Lens focal length | 25mm to 100mm continuous zoom |
| Field of view | 17.5°×14°～4.4°×3.52° (error ≤5%) |
| Pseudo-color | 6 types |
| Numbers multiplied | 1～4X |
| Noise equivalent temperature difference | NETD≤40mK |
| Minimum distinguishable temperature difference | MRTD≤500mK |
| Visible light camera | |
| resolution | 1920×1080 |
| Response band | 0.4μm to 0.9μm |
| Pixel size | 2.8μm |
| Optical zoom | 30 times |
| Mixed Variable Multiplication | 60 times |
| focal length | 4.3mm～129mm |
| Field of view | 63.7°×35.8°～2.3°×1.3°(±5%) |
| zoom mode | Autofocus, manual focus |
| Minimum Illumination | 0.01 Lux (Black and White) |
| Laser rangefinder | |
| wavelength | 1535nm |
| Maximum ranging distance | ≥6km (under conditions of visibility ≥15km) |
| Minimum ranging distance | ≤20m |
| Distance measurement accuracy | ≤2m |
| Ranging frequency | 1-5Hz adjustable |
| Servo Platform | |
| Orientation angle | 360°×n (360° continuous rotation) |
| Pitch angle | -120°～+90° (positive for upward) |
| Frame corner accuracy | ≤0.06°（1σ） |
| Stable accuracy | ≤0.05mrad (1σ) |
| Maximum turning speed | Azimuth ≥ 60°/s, Pitch ≥ 60°/s |
| Maximum turning acceleration | Azimuth ≥ 100°/s², Pitch ≥ 100°/s² |
| System Indicators | |
| Image tracking | Automatically track selected target |
| Power supply voltage | 20V～32VDC |
| power | Stable power consumption: ≤30W |
| weight | ≤8Kg |
| volume | ≤230mm×245mm×313mm |
| interface | |
| Control Interface | RS422/100Mbps Ethernet |
| Video interface | HD-SDI/100Mbps Ethernet |
| Storage interface | ≤128G memory card (Mini SD card) |
| Image format | JPG format |
| Video format | AVI format |
| Environmental adaptability | |
| Operating temperature | -40℃～＋60℃ |
| Storage temperature | -45℃～＋65℃ |
| Vibration conditions | The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions. |
| Impact conditions | Peak acceleration 20g, duration 11ms |
| Protection level | Protect from light rain |

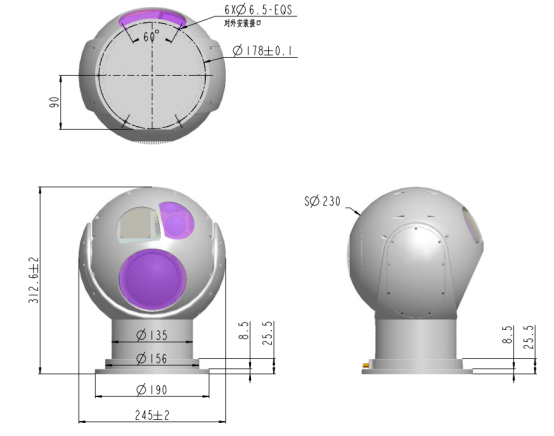

V. Mechanical Dimensions and Installation Interfaces
Figure 2 Product DimensionsZT230TA Two-Axis Three-Light Turntable
