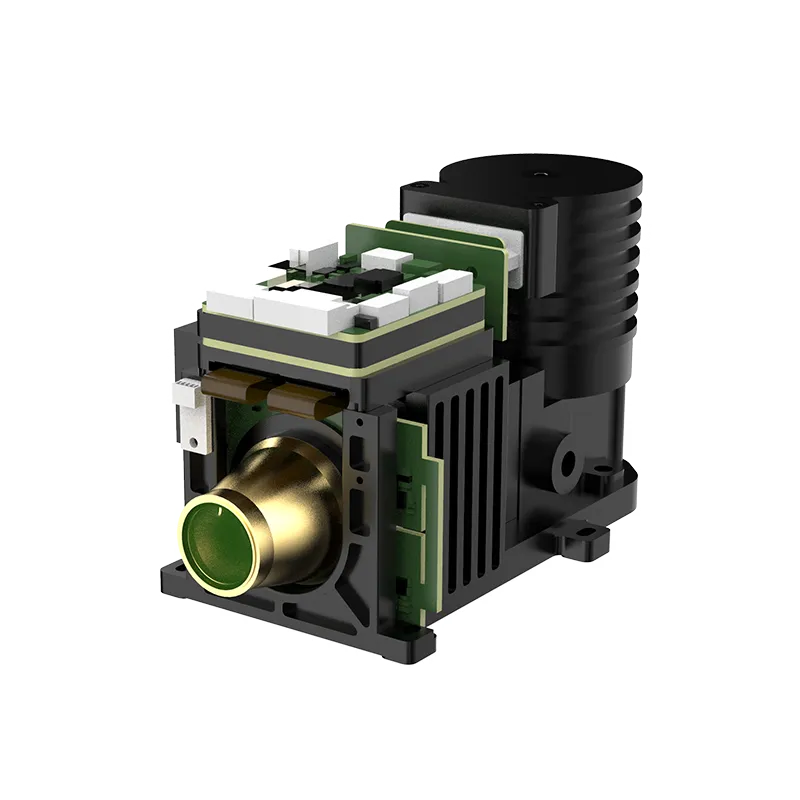

Photon ML615 Long-Wave Cooled Infrared Module
China Moneypro
The Photon ML615 long-wave cooled infrared module is provided with the high-performance T2SL cooled infrared FPA detector and carried with the self-developed image processing algorithm.
With better sand and dust penetrability, and anti-interference capacity of reflected light, it reaches a frame rate of up to 100Hz.
It supports multiple digital video interfaces, is suitable for multiple fixed focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, dynamic loading, anti-UAV, and other scenarios.
It provides an SDK, which is simple and easy to use, reducing secondary development costs.
With better sand and dust penetrability, and anti-interference capacity of reflected light, it reaches a frame rate of up to 100Hz.
It supports multiple digital video interfaces, is suitable for multiple fixed focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, dynamic loading, anti-UAV, and other scenarios.
It provides an SDK, which is simple and easy to use, reducing secondary development costs.
Feature
1. Delicate Images with High Sensitivity
The NETD is as low as 25mK, meeting the requirements of long-distance observation of tiny targets.
2. Self-Developed Algorithm for Intelligent Imaging
Equipped with a new self-developed image algorithm, it supports a wide dynamic range and adaptive integral time, providing the best imaging effect for different scenarios.
3. Wider Band and Precise Focus
It covers bands from 7.7 to 10μm and supports various fixed and continuous zoom lenses, meeting the needs of multi-scenario applications.
4. Higher Frame Rate for Timely Capture
The resolution is up to 640×512 and the frame rate is as high as 100Hz, meeting the requirements of large-range dynamic target capture.
Specification
| Performance Indicators | |
| Detector Type | T2SL Cooled Infrared FPA |
| Resolution | 640×512 |
| Pixel Pitch | 15μm |
| Spectral Band | 7.7±0.2μm～10±0.5μm |
| NETD | ≤25mK at 25℃ |
| Operability | ≥99.5% |
| Cooling Time@25°C | 7min |
| Image Adjustment | |
| Brightness/Contrast Adjustment | Manual/Auto |
| Polarity | Black-hot/White-hot (white-hot by default) |
| Reticle | Display/Blank/Move |
| Digital Zoom | 1.0~8.0 continuous zoom (step size:0.1) |
| Image Processing | Non-uniformity correction, digital filter noise reduction, digital detail enhancement |
| Mirroring | Horizontal/Vertical/Diagonal |
| Power Supply | |
| Power Supply Range (typical) | 26~32V DC, typical voltage of 28V DC |
| Interface | |
| Analog Video | PAL |
| Digital Video | Cameralink |
| Serial Communication Interface | RS422 (default baud rate: 115200) |
| Synchronization Mode | Internal synchronization (default)/External synchronization/Adaptive synchronization mode |
| Physical Characteristics | |
| Dimensions (Without lens) | 121×75×79mm (±1) |
| Weight (Without lens) | ≤870g |
| Environment Adaptability | |
| Operating Temperature | -40℃～+60℃ |
| Storage Temperature | -45℃～+65℃ |
| Temperature Shock | -45℃~+65℃（≤5℃/min） |
| Random Vibration | 6.06g |
| Shock | Final peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total) |
| MTTF | ≥10000h |
| Power and Interface | |
| Typical Power Consumption at 25°C | Stable power consumption ≤ 12W, peak power consumption ≤ 25W |
Application Scenariosa
Perimeter Monitoring
Nature Reserve
Handheld Device

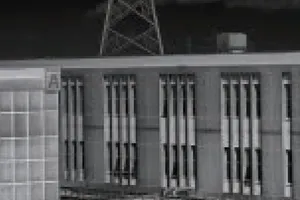

Vision Enhancement
