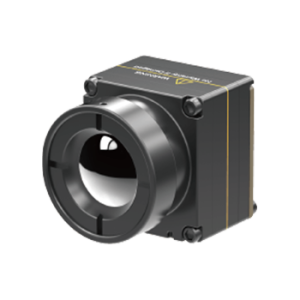

Photon MM615S Medium-Wave Cooled Infrared Module
China Moneypro
The Photon MM615 medium-wave cooled infrared module is provided with the high-performance HgCdTe cooled infrared FPA detector, and carried with the self-developed image processing algorithm.
It reaches the frame rate of up to 100Hz, and has the NETD as low as 15mK.
It supports multiple digital video interfaces, is suitable for multiple focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, dynamic loading, and other scenarios.
It provides an SDK, which is simple and easy to use, reducing secondary development costs.
It reaches the frame rate of up to 100Hz, and has the NETD as low as 15mK.
It supports multiple digital video interfaces, is suitable for multiple focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, dynamic loading, and other scenarios.
It provides an SDK, which is simple and easy to use, reducing secondary development costs.
Feature
1. Delicate Images with High Sensitivity
The NETD is as low as 15mK, meeting the requirements of long-distance observation of tiny targets.
2. Self-Developed Algorithm for Intelligent Imaging
Equipped with a new self-developed image algorithm, it supports a wide dynamic range and adaptive integral time, providing the best imaging effect for different scenarios.
3. Higher Frame Rate for Timely Capture
The resolution is up to 640×512 and the frame rate is as high as 100Hz, meeting the requirements of large-range dynamic target capture.
- With multiple lenses optional, it can flexibly adapt to multiple scenarios.
- Dedicated support to help users choose the right lens for themselves, efficient and convenient.
Specification
| Performance Indicators | |
| Detector Type | HgCdTe cooled infrared detector |
| Resolution | 640×512 |
| Frame Rate | 100 Hz/50 Hz/30 Hz |
| F# | F2.0/F4.0 |
| Pixel Pitch | 15μm |
| Spectral Band | 3.7±0.2μm～4.8±0.2μm |
| NETD | ≤15mK@25℃ |
| Detector Defective Pixel Rate | ≤0.5% |
| Cooling Time@25°C | ≤7min |
| Image Adjustment | |
| Brightness/Contrast Adjustment | Manual/Auto |
| Polarity | Black-hot/White-hot (white-hot by default) |
| Reticle | Display/Blank/Move |
| Digital Zoom | 1.0~8.0 continuous zoom (step size:0.1) |
| Image Processing | Non-uniformity correction, digital filter noise reduction, digital detail enhancement |
| Mirroring | Horizontal/Vertical/Diagonal |
| Power Supply | |
| Power Supply Range | 27~36V DC (with isolation), typical voltage of 28V DC |
| Power Consumption (Typical, @25°C) | Steady status ≤16W, peak ≤35W |
| Interface | |
| Analog Video | PAL |
| Digital Video | Cameralink/SDI |
| Serial Communication Interface | RS422(default baud rate: 115200) |
| Physical Characteristics | |
| Dimensions (Without lens) | ≤ 870g (with isolation) |
| Weight (Without lens) | 144×75×81mm (±1) (with isolation) |
| Environment Adaptability | |
| Operating Temperature | -40℃～+60℃ |
| Storage Temperature | -45℃～+65℃ |
| Temperature Shock | -45℃~+65℃（≤5℃/min） |
| Random Vibration | 4.2g |
| Shock | Final peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total) |
| MTTF | ≥8000h |
| Storage Life | 10 years |
Application Scenariosa
Perimeter Monitoring
Nature Reserve
Handheld Device
Vision Enhancement
