| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
500mA~1000mA @ 16V |
| Working environment temp. |
-20℃ ~ +60℃ |

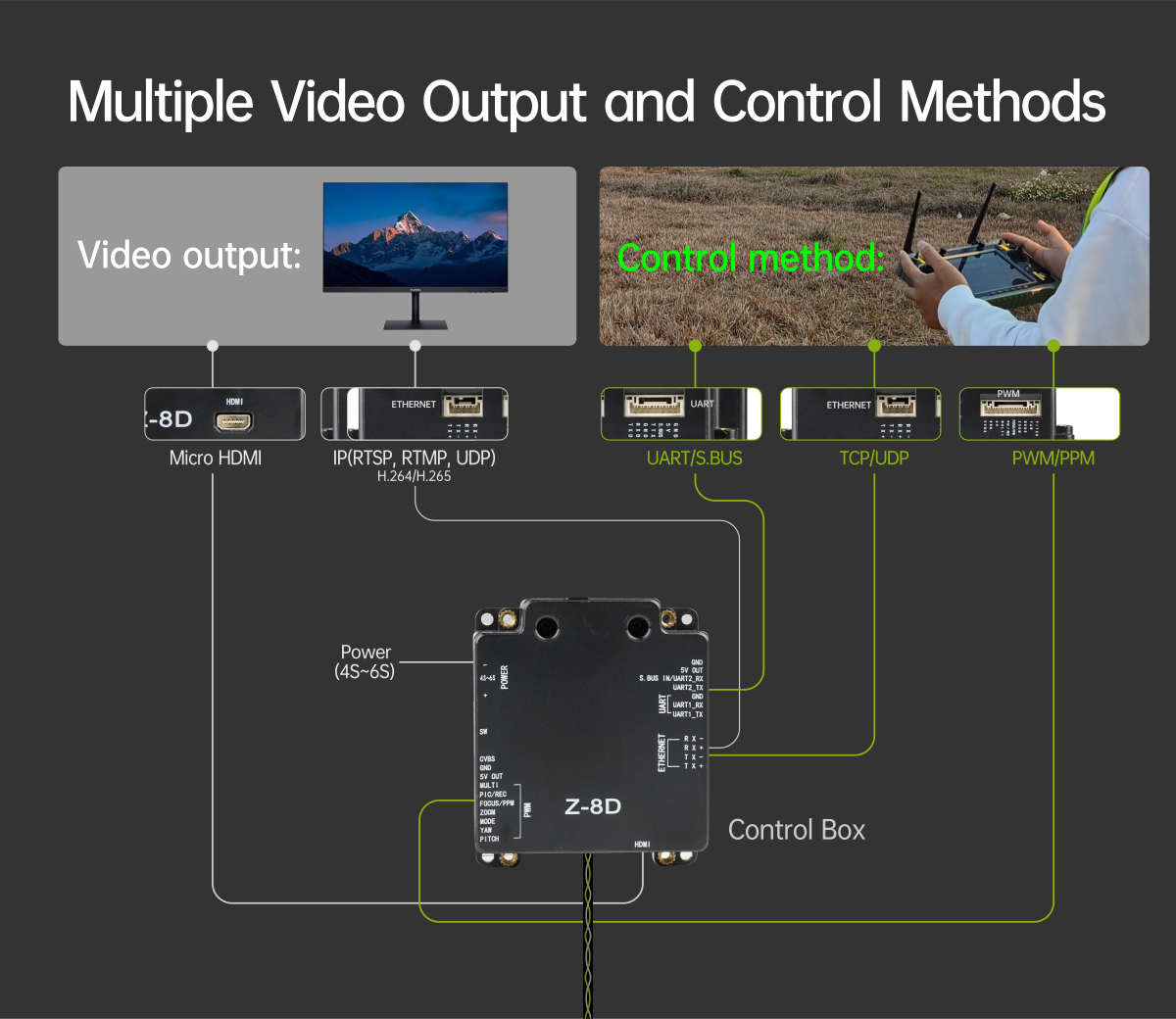

| Output |
micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage |
SD card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card |
JPG(1920*1080) |
| Video storage format in TF card |
MP4 (1080P 30fps) |
| Card reading online |

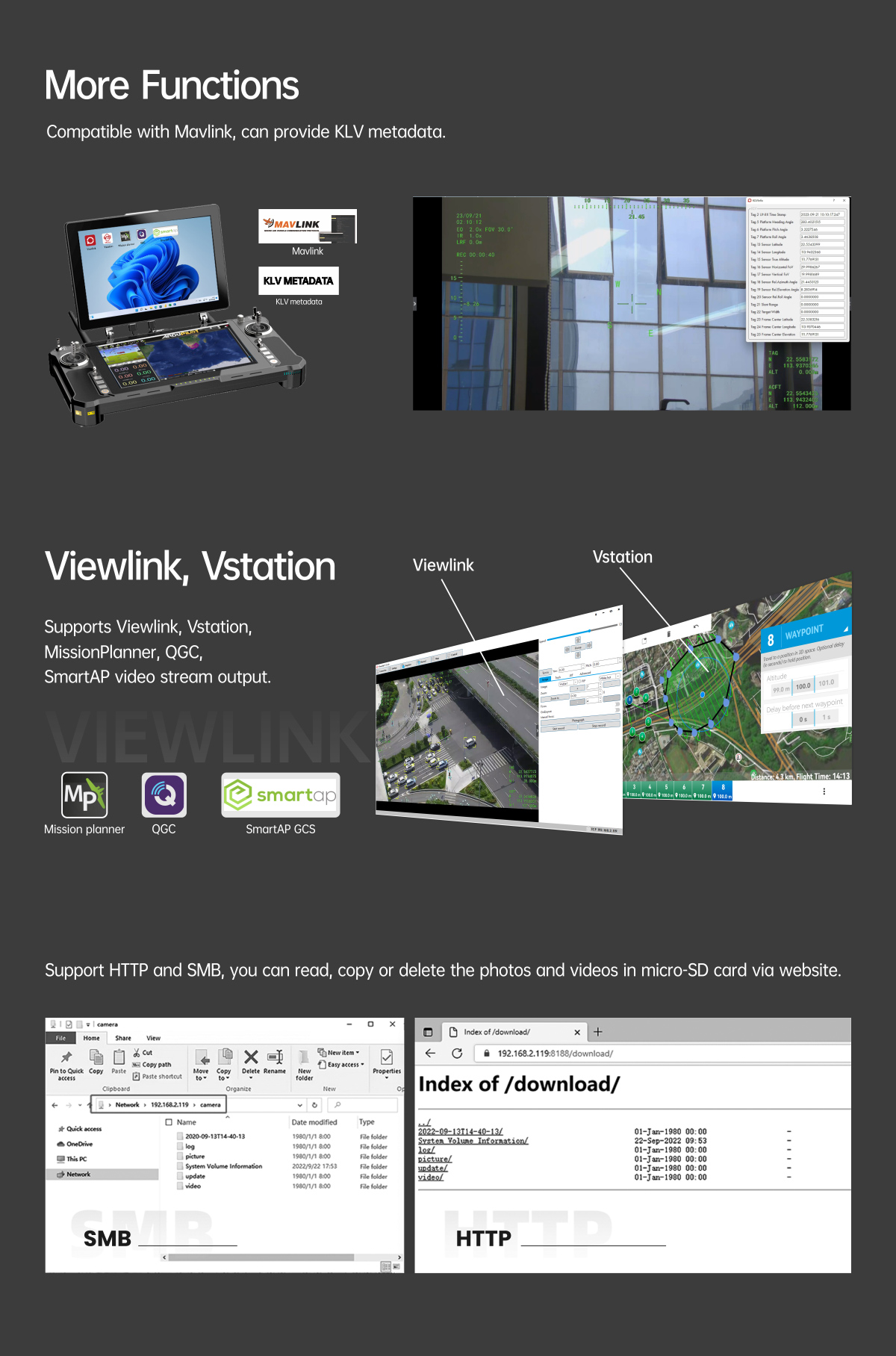

SMB read / HTTP read |
| Control method |
PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging |
Support, display time and GPS coordinate in picture exif |

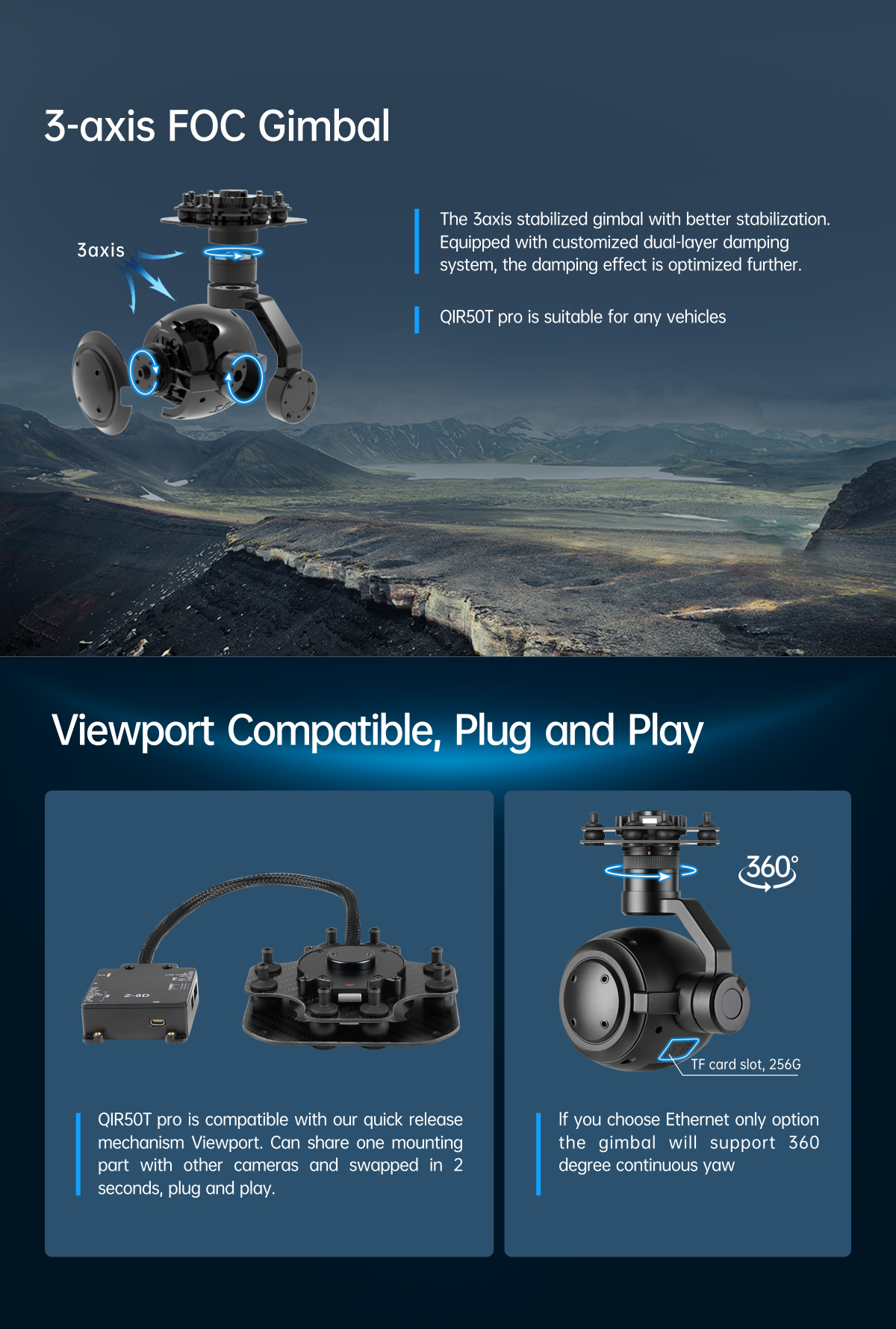

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -90~125° , Roll: ±35°, Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) |
| Controllable Range |
Pitch/Tilt: -45°~120° , Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) |
| Vibration angle |
Pitch/Roll: ±0.02° , Yaw：±0.02° |
| One-key to center |
√ |
| IR Thermal Imager Spec |
| Focus Length |
50mm |
| Horizontal FOV |
17.5 |
| Vertical FOV |
14 |
| Diagonal FOV |
22.3 |

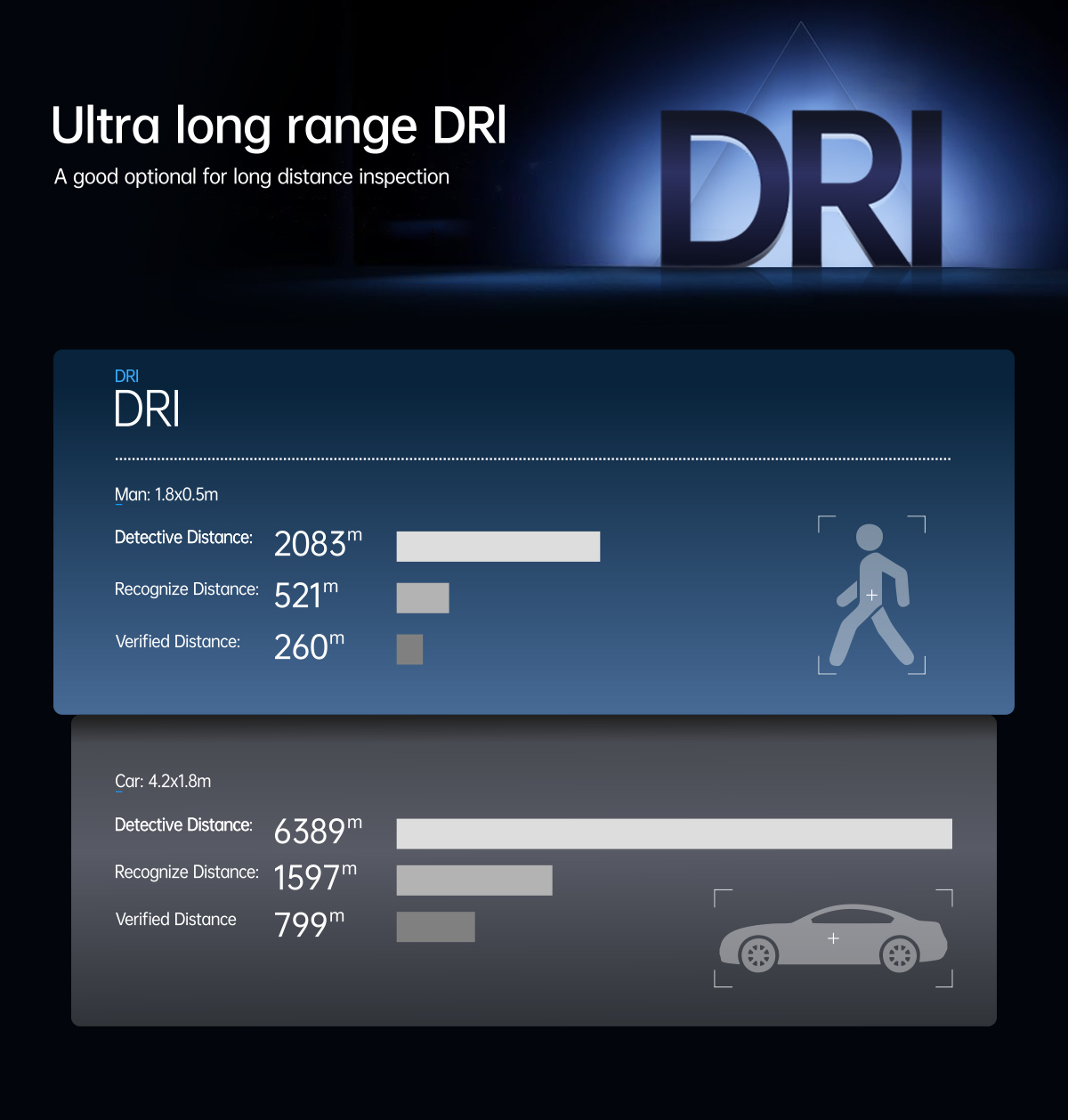

| Detective Distance (Man: 1.8×0.5m) |
2083 meters |
| Recognize Distance (Man: 1.8×0.5m) |
521 meters |
| Verified Distance (Man: 1.8×0.5m) |
260 meters |
| Detective Distance (Car: 4.2×1.8m) |
6389 meters |
| Recognize Distance (Car: 4.2×1.8m) |
1597 meters |
| Verified Distance (Car: 4.2×1.8m) |
799 meters |
| Working mode |
Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel |
1280*1024 |
| Pixel pitch |
12μm |
| Focusing method |
Athermal prime lens |
| Emissivity correction |
0.01~1 |
| NETD |
≤50mK (@25℃) |
| MRTD |
≤650mK (@characteristic frequency) |
| Image enhancement |
Auto adjust image brightness and contrast ratio |

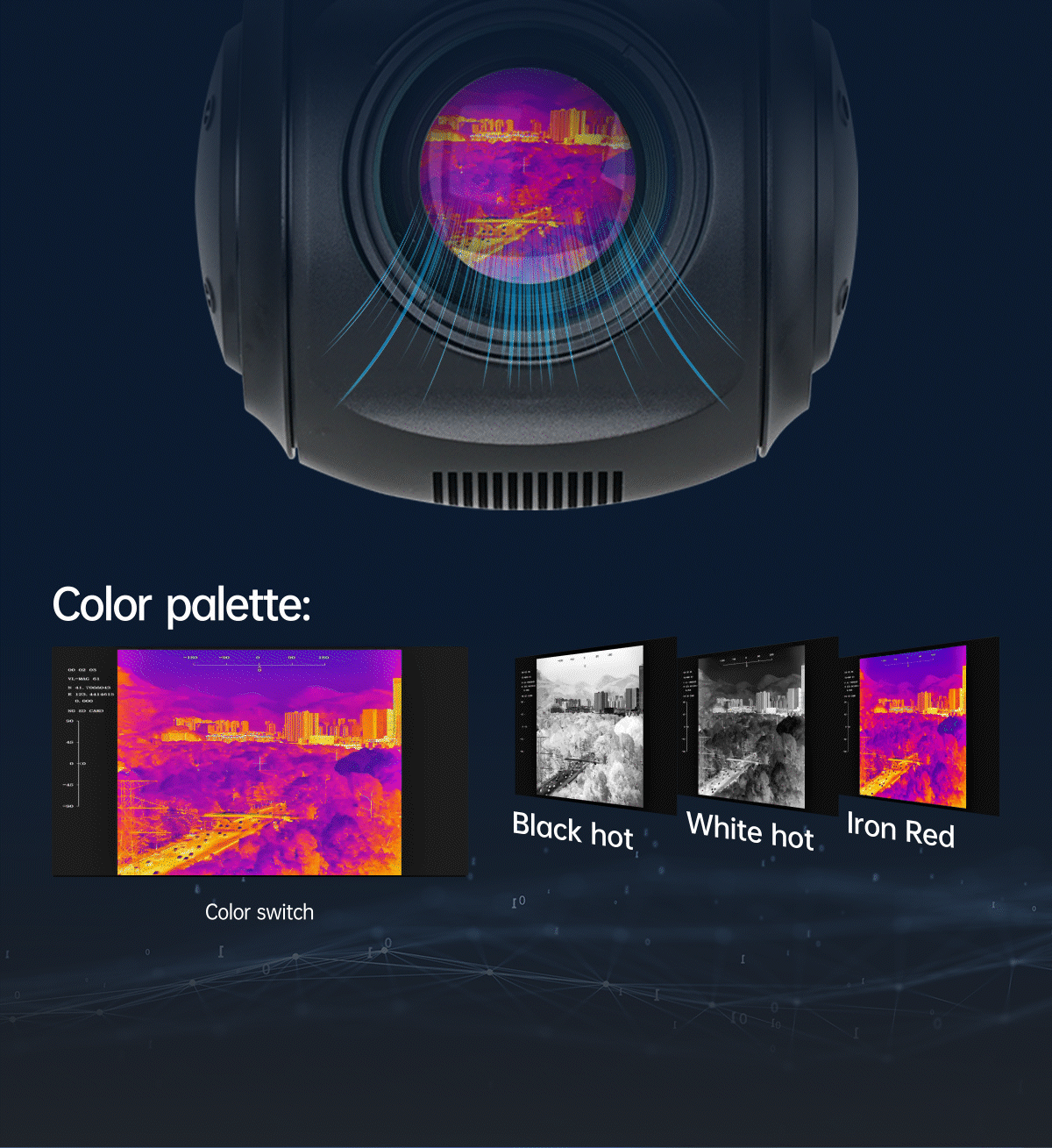

| Color palette |
White, black, pseudo color |
| Auto Non-uniform correction |
Yes (no shutter) |

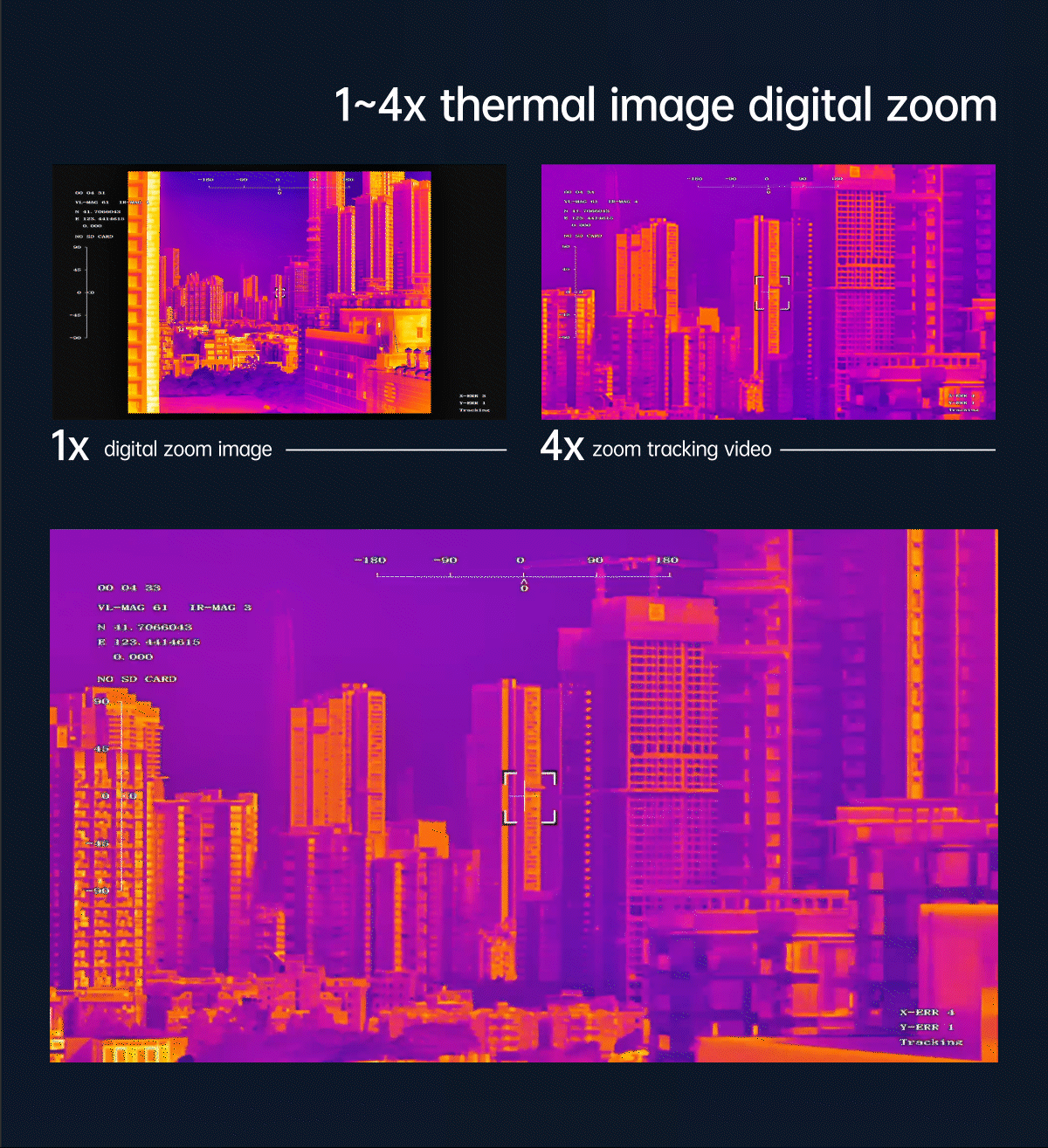

| Digital zoom |
1x ~ 4x |
| Sync correct time |
Yes |

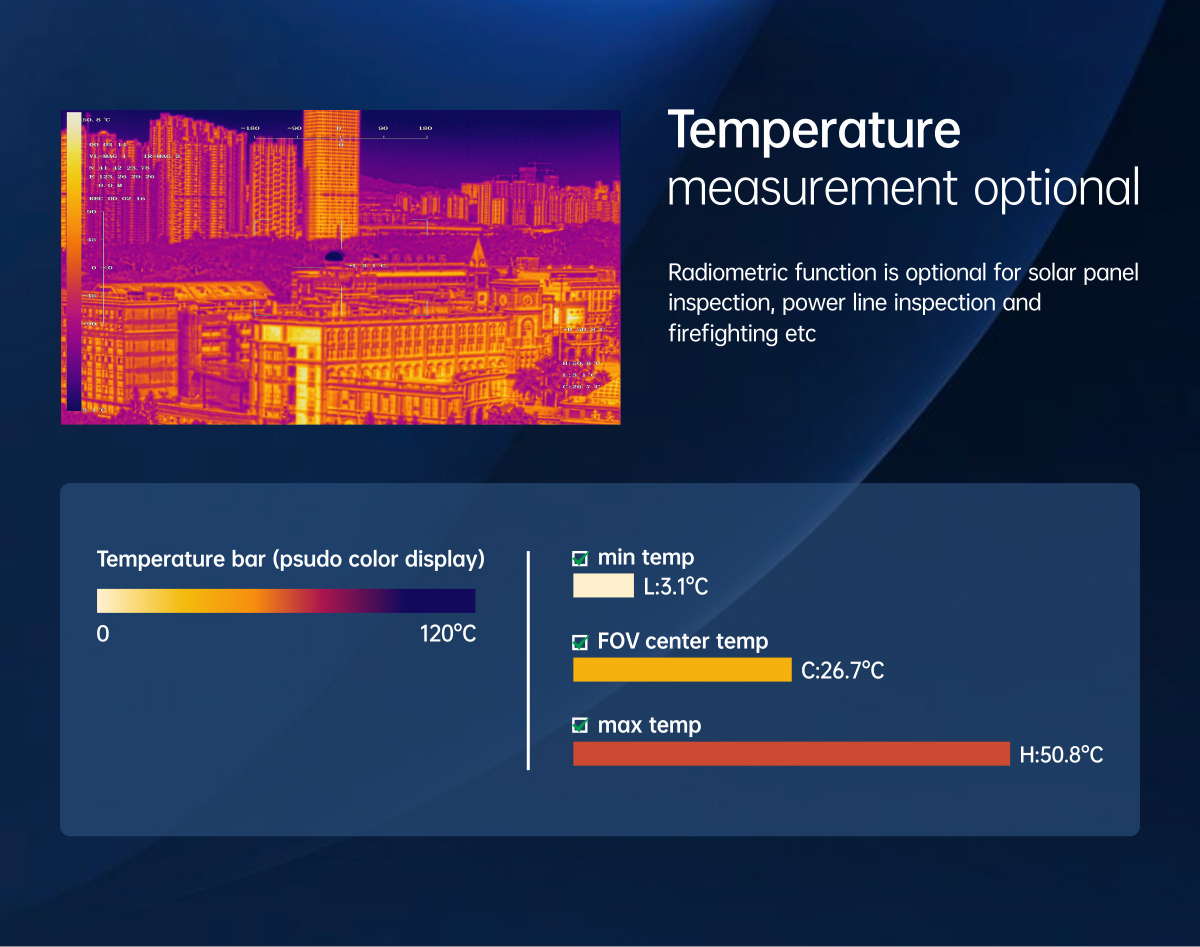

| Thermometry type |
Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning |
0℃~120℃ (For thermometry version only) |

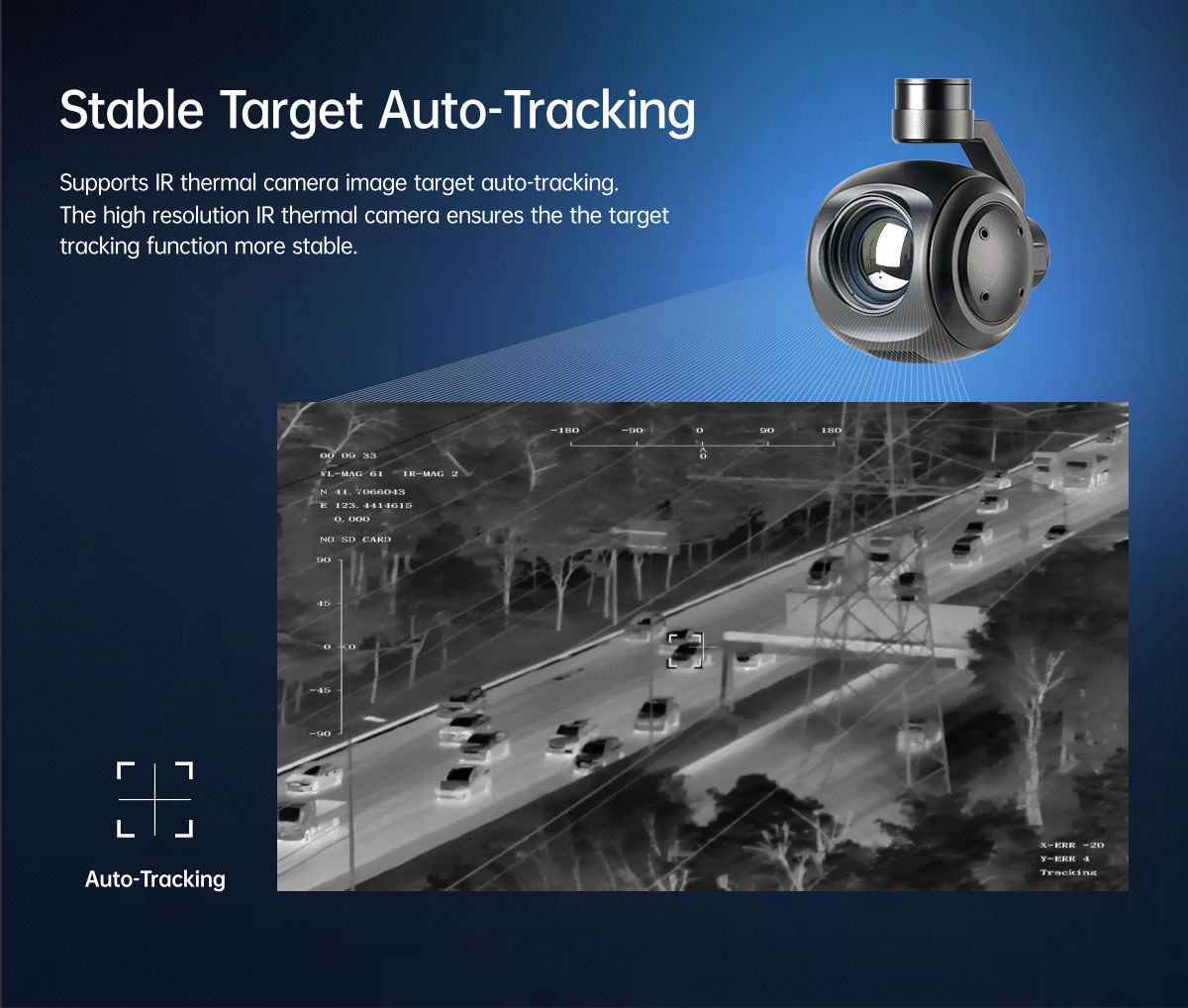

| IR Thermal Object Tracking |
| Update rate of deviation pixel |
50Hz |
| Output delay of deviation pixel |
5ms |
| Minimum object size |
32*32 pixel |
| Maximum object size |
128*128 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames (4s) |
| Packing Information |
| N.W. |
1020g (Viewport version) |
| Product meas. |
112*136*190.9mm |

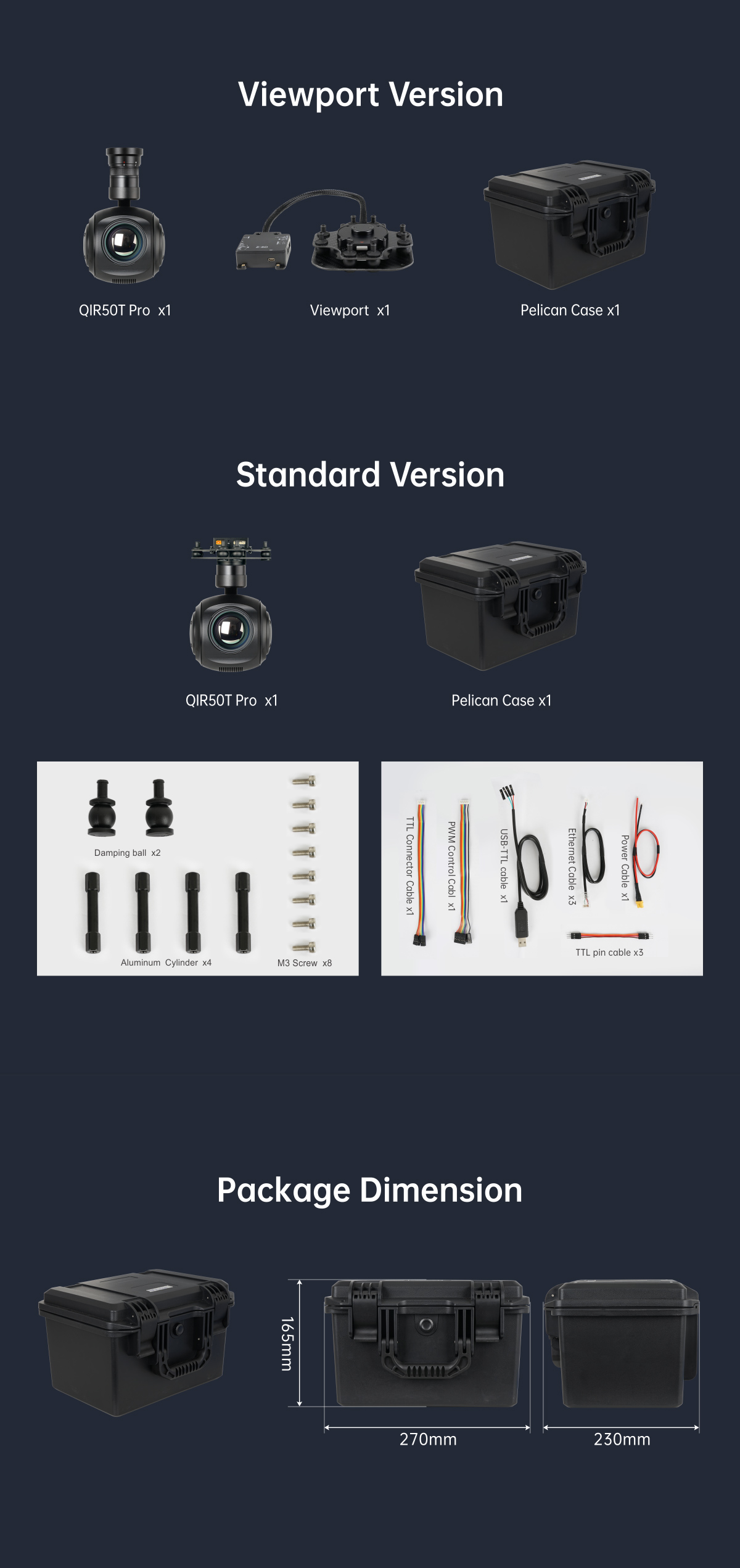

| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
2632g |
| Package meas. |
300*250*200mm |
