SP026A Two-Axis Servo Stabilization Platform
The MSP026A two-axis servo-stabilized platform consists of a dual-frame structure for pitch and azimuth, a high-precision gyroscope, servo control circuitry, and an image tracker. It features lightweight construction, high stability and precision, and high integration. It can be applied to unmanned vehicles, armored vehicles, unmanned boats, and sentry towers, working with payloads to perform day and night reconnaissance, surveillance, and target location tasks.
The servo stabilization platform, in conjunction with the optoelectronic payload, can achieve all-weather detection, identification, and tracking of ground targets, and output video in real time for mission personnel to view.
Servo stabilization platforms are mainly used in conjunction with optoelectronic payloads in scenarios such as air detection, ground detection, border and coastal defense, high-point monitoring, and border outposts.
I. Photos of the actual product

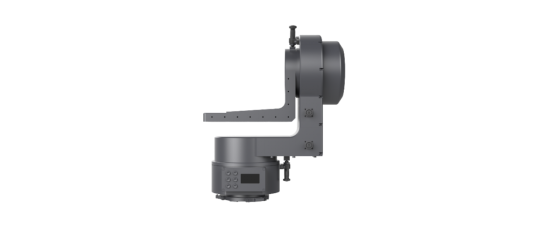

Figure 1 Product Image
II. Product Functions
a) It has two degrees of freedom: azimuth and pitch;
b) Possesses target tracking capability (receives target deviation tracking or receives video to automatically extract target position for tracking);
c) It has the function of calculating and transmitting azimuth and elevation angle data;
d) It has a communication interface that can be used for gimbal attitude control;
e) Equipped with BeiDou positioning and orientation functions, the BeiDou decoding board is installed inside the gimbal, and the dual BeiDou antennas are externally mounted (the customer provides the BeiDou module (including the BeiDou decoding board, dual BeiDou antennas, and matching connecting cables)).
f) It has the ability to recognize external control handle button signals, and the handle is used to control the gimbal rotation and enter /exit the tracking function;
g) The electric pan-tilt head has button functions, which can control the horizontal and pitch rotation of the electric pan-tilt head through the buttons on the electric pan-tilt head itself. It has a one-key lock /unlock function and can display lock/unlock characters.
III. Platform
Unmanned boats, unmanned vehicles, and other moving and static base mounting platforms.
IV. Main Technical Parameters
| model | SP026A |
| Servo Platform | |
| Orientation angle | 360°×n (360° continuous rotation) |
| Pitch angle | -20° to +20° (0° is horizontal, negative is downward, and positive is upward) |
| Frame corner accuracy | ≤0.05° (1σ) |
| Stable accuracy | ≤0.05mrad (1σ) |
| Maximum turning speed | Azimuth ≥ 30°/s, Pitch ≥ 10°/s |
| Maximum turning acceleration | Azimuth ≥ 100°/s², Pitch ≥ 100°/s² |
| System Indicators | |
| Power supply voltage | 20V～32VDC |
| power | Stable power consumption: ≤25W (without load) |
| Load weight | ≥6Kg |
| weight | ≤7Kg |
| volume | ≤336mm×279.5mm×155mm |
| interface | |
| Load and Platform Interface | RS232 |
| External control interface | RS422 |
| Video interface | HD-SDI/100Mbps Ethernet |
| Installation interface | See details: Mechanical Interface |
| Environmental adaptability | |
| Operating temperature | -40℃～＋60℃ |
| Storage temperature | -40℃～＋60℃ |
| Vibration conditions | The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions. |
| Impact conditions | Peak acceleration 20g, duration 11ms |
| Protection level | Protects against light rain and sandstorms |
V. Mechanical Dimensions and Installation Interfaces
Figure 2 Product Dimensions
