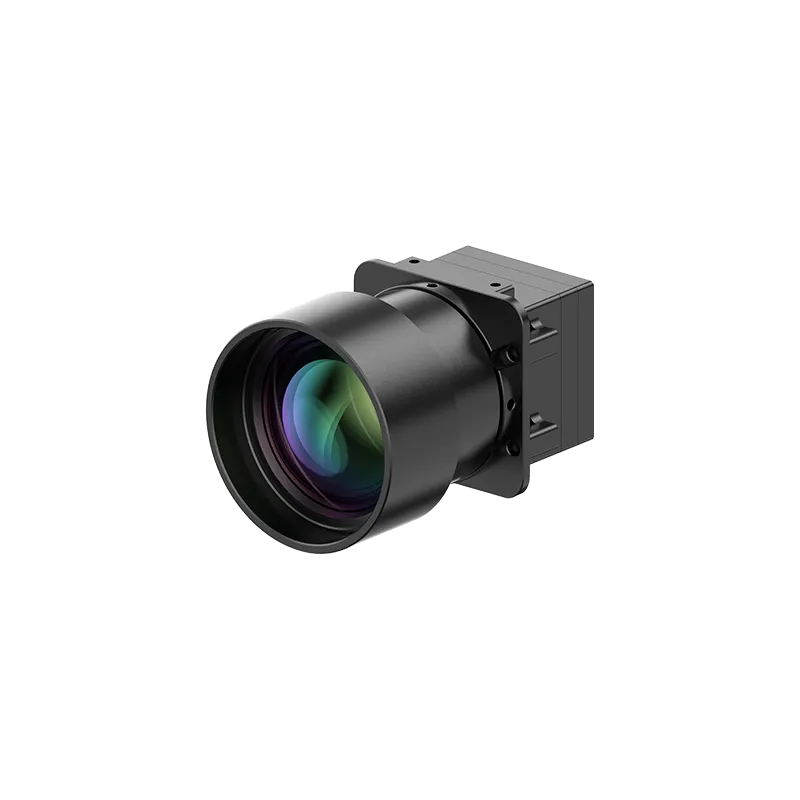

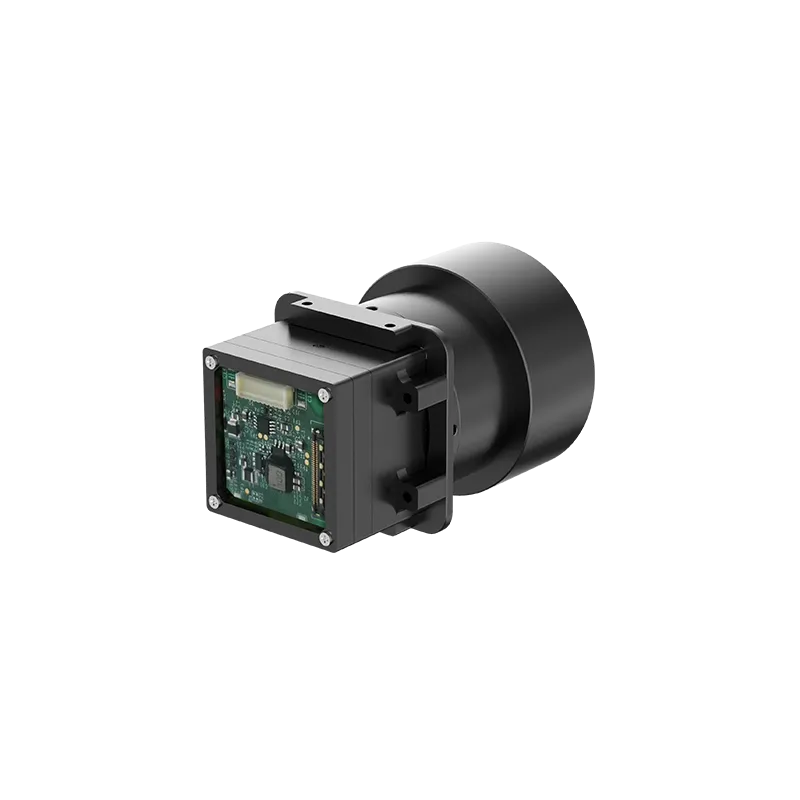

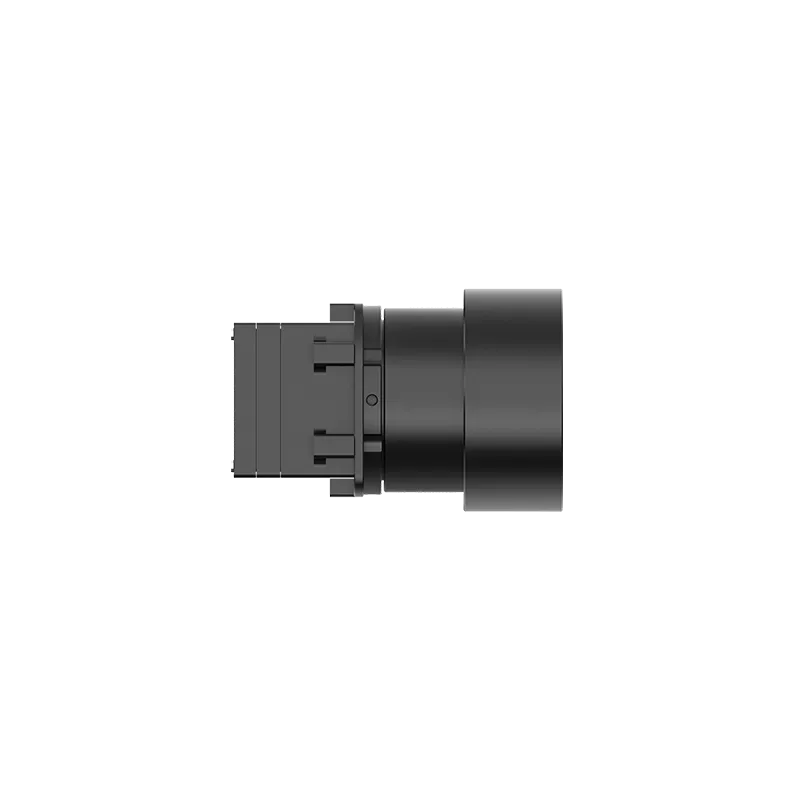

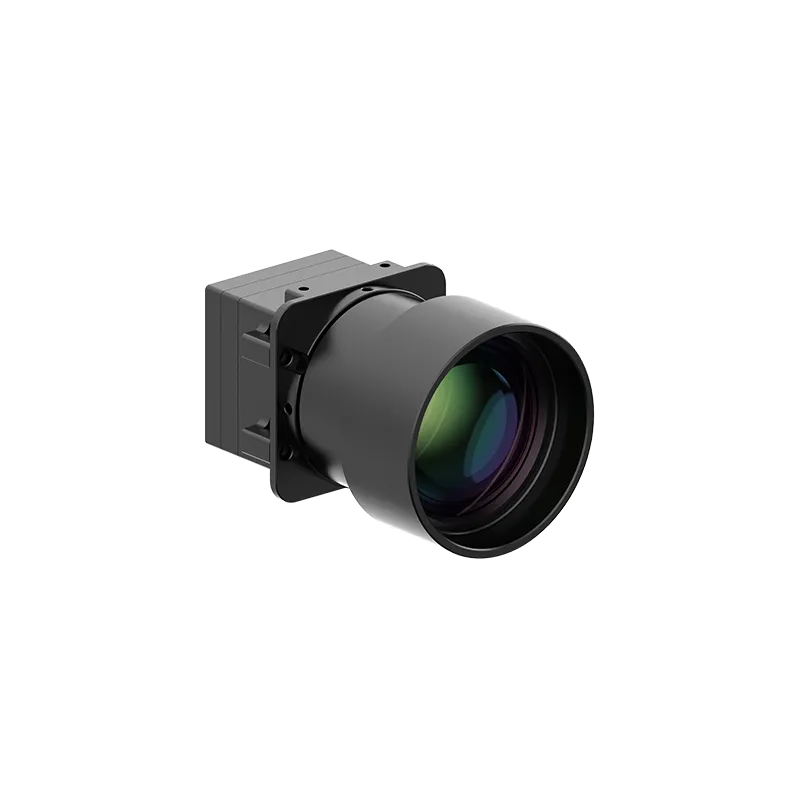

Turing MA1280H Uncooled Infrared Module

China Moneypro

Turing MA1280H uncooled infrared module is developed based on excellent design to pursue high reliability and high performance in harsh environments. Along with advanced image algorithms, the product can steadily provide quality infrared images against harsh environments. It is equipped with rich lenses and multiple extension components to satisfy high-performance application requirements in industries such as electro-optical pods, vehicle-mounted applications, outdoor and security.

Get in Touch

Feature

Superior Performance

It is equipped with a self-developed 12μm VOx uncooled infrared detector; its resolution is 1280×1024; NETD≤40mK@25°C; F#1.0; it has high sensitivity.

High Reliability

Impact resistance reaching 1000g@0.3ms.

Multiple Selections

Support Camera Link/BT1120/HDMI/USB interfaces for output.
Provide athermalized lenses with varied specifications and be suitable for auto-focus zoom lenses for various application scenarios.

Specification

Performance Indicators
Detector Type	Uncooled VOx infrared detector
Resolution	1280×1024
Frame Rate	30 Hz
Pixel Pitch	12μm
Spectral Band	8~14μm
NETD	≤40mK at 25℃, F#1.0
Thermal Time Constant	≤15ms
Image Adjustment
Brightness/Contrast Adjustment	Automatic/Manual brightness and contrast adjustment
Polarity	Black-hot/White-hot
Palette	Support
Image Correction	Automatic/Manual/Background correction is available
Reticle	Display/Blank (default)/Move (digital video)
Digital Zoom	1.0~8.0 continuous zoom (step size:0.1)
Image Processing	TEC-less temperature control algorithm, Non-uniformity correction, digital filtering noise reduction, and digital detail enhancement
External Synchronization Function	Self-synchronization/Internal synchronization/External synchronization/Adaptive synchronization mode
Mirroring	Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical)	6-20V, Typical supply 6V
Typical Power Consumption at 25°C Without Extension	Steady status ≤1W
Insulation Protection	The enclosure ground is insulated from signal and power ground with an insulation resistance of >10MΩ
Interface
Digital Video	BT.1120/LVCMOS
Analog Video	none
Serial Communication Interface	RS422/RS232/UART
Extension Components	Camera Link/BT.1120/HDMI/USB
External Synchronization	LVTTL
Physical Characteristics
Dimensions (Without lens and extension components)	32mm×32mm×25.5mm
Weight (3.2mm, without extension components)	43g±5g
Environment Adaptability
Operating Temperature	-40°C~+60°C
Storage Temperature	-45°C~+70°C
Humidity	5 ~ 95%, non-condensing
Vibration	6.06g, random vibration, three axes, 5min/axis
Impact	1000g@0.3ms, optical axis direction
