Turing MA640 Uncooled Infrared Module (Temperature Measurement)
China Moneypro

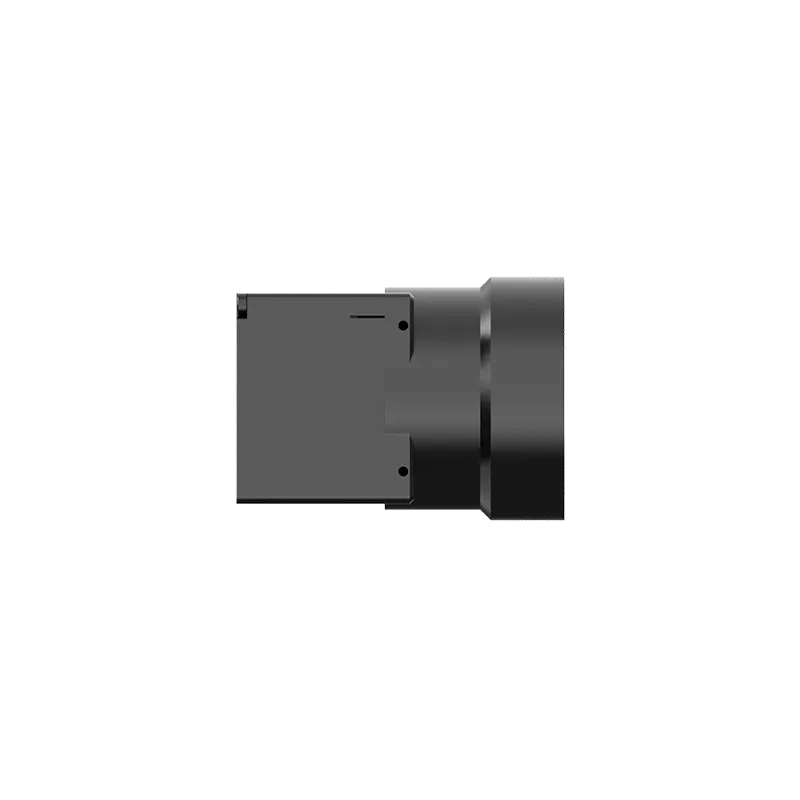

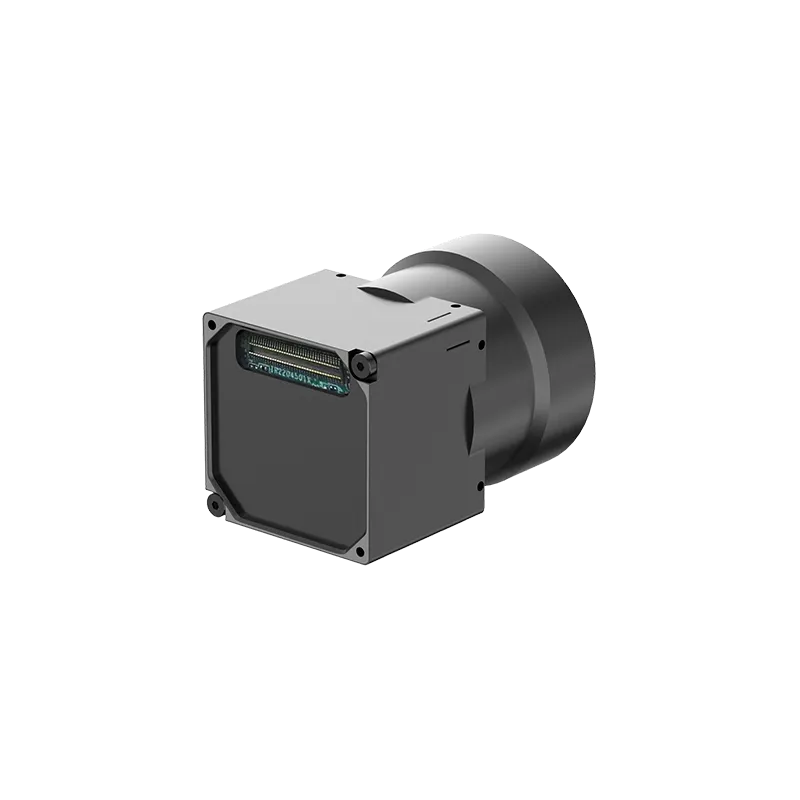

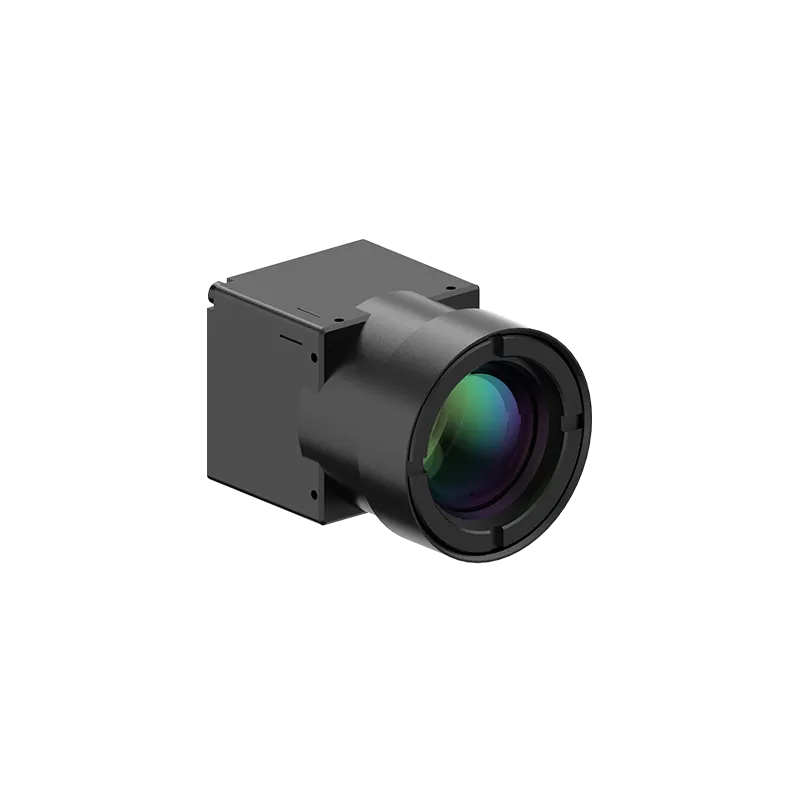

Turing MA640 uncooled infrared module is equipped with a 640×512 ceramic-packaged infrared detector. It can not only provide clear images and accurate temperature data but also be equipped with multiple serialized lenses and various kinds of user extension components for customers to select. It can be applied in many fields such as industrial and electrical temperature measurement, security, and machine vision.
Feature
Multiple Selections
- Provide 10+ a thermalized lenses applicable to different distance apps.
Excellent Temperature Measurement Characteristics
- Measurement range of -20°C~+550°C; Provide precise and rapid temperature assessment capability.
Flexible Extension
- Flexible USB, MIPI, DVP, LVDS, Camera Link and analog video output interfaces,Provide SDK to support secondary development.
Specification
| Performance Indicators | |
| Detector Type | Uncooled VOx infrared detector |
| Resolution | 640×512 |
| Frame Rate | 25 Hz |
| Pixel Pitch | 12μm |
| Spectral Band | 8~14μm |
| NETD | ≤50mK at 25°C (≤40mK, optional) |
| Image Adjustment | |
| Brightness/Contrast Adjustment | Manual/Automatic/Linear |
| Polarity | Black-hot/White-hot |
| Palette | Support |
| Reticle | Display/Blank/Move |
| Digital Zoom | 1.0~4.0× continuous zoom (step size: 0.1) |
| Image Processing | Tecless Scenario-based nonuniformity correction, digital filtering noise reduction, and digital detail enhancement |
| Mirroring | Horizontal/Vertical/Diagonal |
| Power Supply | |
| Power Supply Range (typical) | 3.5~18V DC supported by user extension components, 4~5.5V DC |
| Typical Power Consumption at 25°C Without Extension | ＜0.7W |
| Power Protection | Overvoltage, undervoltage, and reverse connection supported by user extension components |
| Interface | |
| Digital Video | BT.656/BT.1120/14Bit or 8Bit LVCMOS/LVDS |
| Analog Video | 1-channel PAL system |
| Serial Communication Interface | UART (3.3V)/RS232 |
| Extension Components | MIPI/USB/Camera Link/Analog video/BT.656/LVDS |
| Temperature Measurement Performance | |
| Measurement Range | For measurement series,-20°C +150°C,+100°C~+550°C |
| Measurement Accuracy | For measurement series, ±3°C or ±3% of reading (The greater shall prevail) at Ambient temperature of -20°C~+60°C±2°C (optional) |
| Measurement Tool | Secondary analysis of points, lines, and areas |
| Physical Characteristics | |
| Dimensions (Without lens and extension components) | 26mm×26mm×19.2mm |
| Weight (3.2mm, without extension components) | 20g±3g |
| Environment Adaptability | |
| Operating Temperature | -20℃～60℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5 ~ 95%, non-condensing |
| Vibration | 6.06g, random vibration, all axes |
| Impact | 80g, 4ms, final peak sawtooth wave, three axes and six directions |
Application Scenariosa

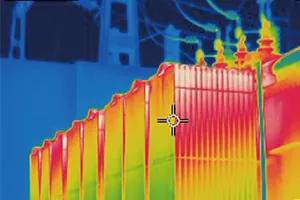

Industrial Temperature Measurement
Electrical Temperature Measurement
UAV
Security Monitoring
