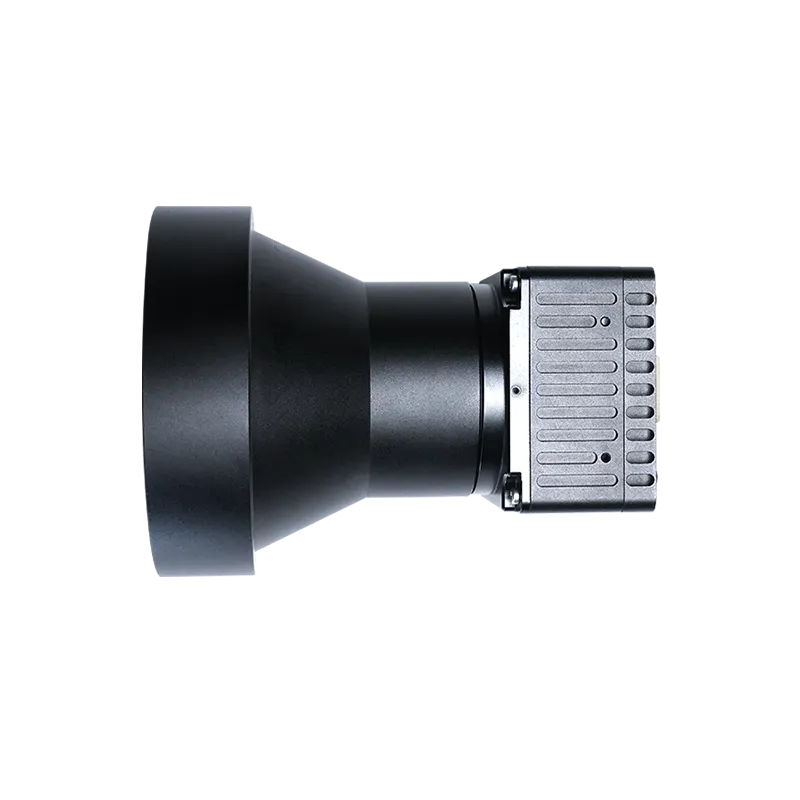

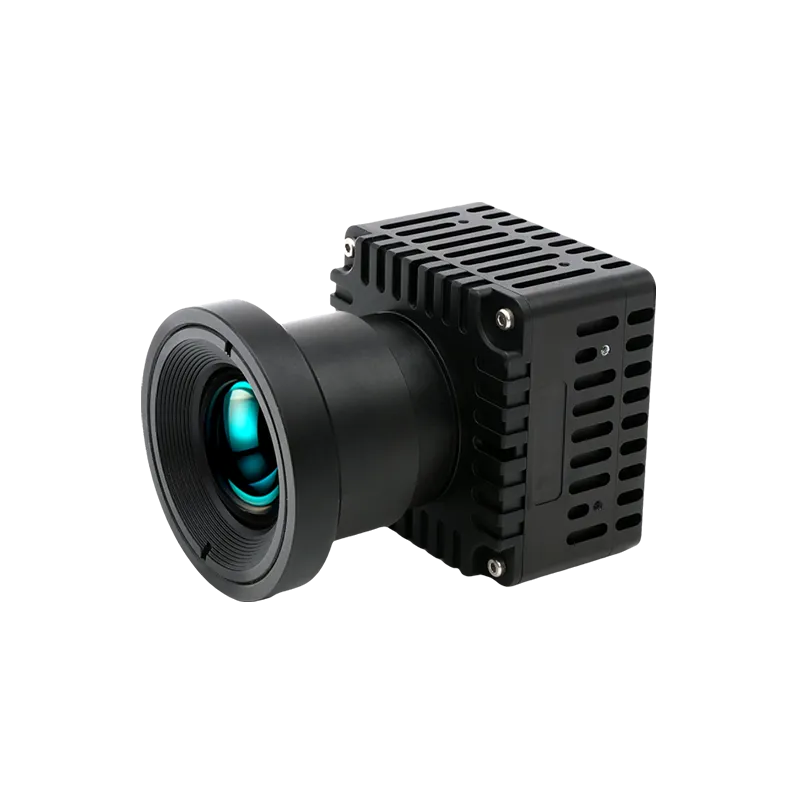

Turing MF1920 HD Uncooled Infrared Module

China Moneypro

The brand-new Turing MF1920 is equipped with the world’s first 8μm 1920×1080 HD infrared detector, and the NETD as low as 30mK. Combined with our self-developed efficient large-array image algorithm, the device provides customers with more subtle, sharper, and clearer thermal images. It supports multiple lenses and applies the lens control technology, offering a comprehensive observation solution within a range of 1m~15000m in fields such as perimeter security, high-altitude observation, oil field monitoring, forest fire prevention and scientific research in universities

Get in Touch

Feature

High-pixel, High-integration

• 2 megapixels, 1920×1080 HD resolution, large FOV, providing an immersive experience.
• Video output interface options including network interfaces, LVCMOS, BT.1120 and MIPI, with extensions for interfaces such as SDI, USB, Camera Link, and HDMI.
• Gigabit network interface, multiple SDKs, facilitating customers to launch simple, efficient integrated secondary development at a low cost.

Quick Focus, Quick Recognition

• New lens control technology for ≤1s automatic focus, full focus in all temperature ranges.
• Quick recognition algorithm within 50ms.

Multi-lens Adaptability, Multi-scenario Application

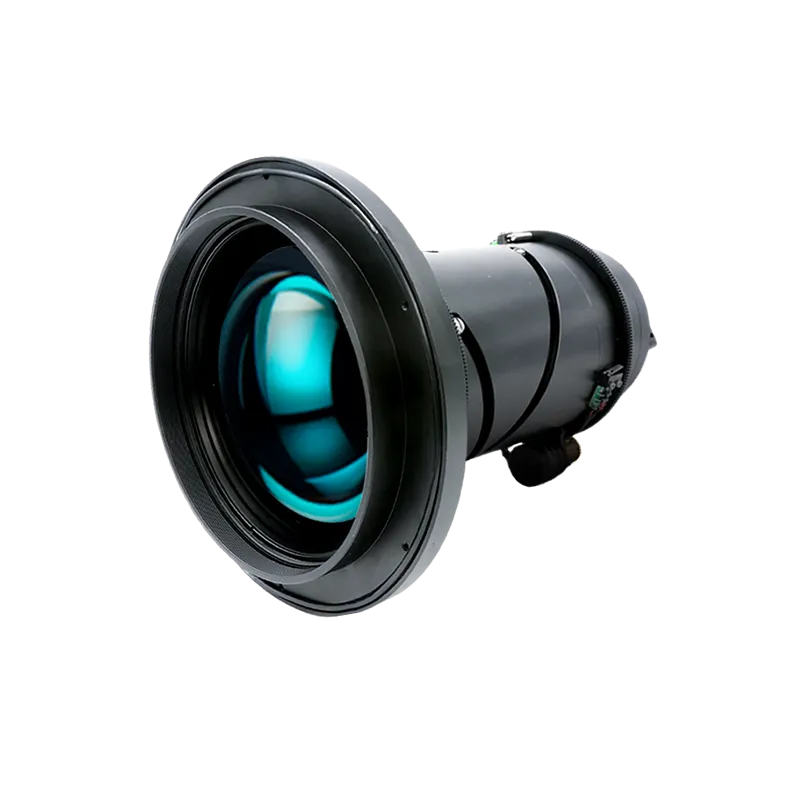

• Multiple athermalized prime lenses with a max FOV of 82°, prime electric focusing lenses, and continuous zoom lenses.
• 8μm infrared detector for further recognition in fields of perimeter security, high-altitude observation, oil field monitoring.
• Rich image style options for ideal image effect in scenarios such as perimeter monitoring and forest fire prevention.

Stable Output, Steady Images

• Stable and reliable 30Hz data stream output to monitor targets in each frame.
• Standard electronic anti-shake technology to provide stable images even in strong wind or at high altitudes.

Specification

Application Scenariosa

Oil Field Monitoring

Forest Fire Prevention

High-altitude Observation

Security Monitoring
