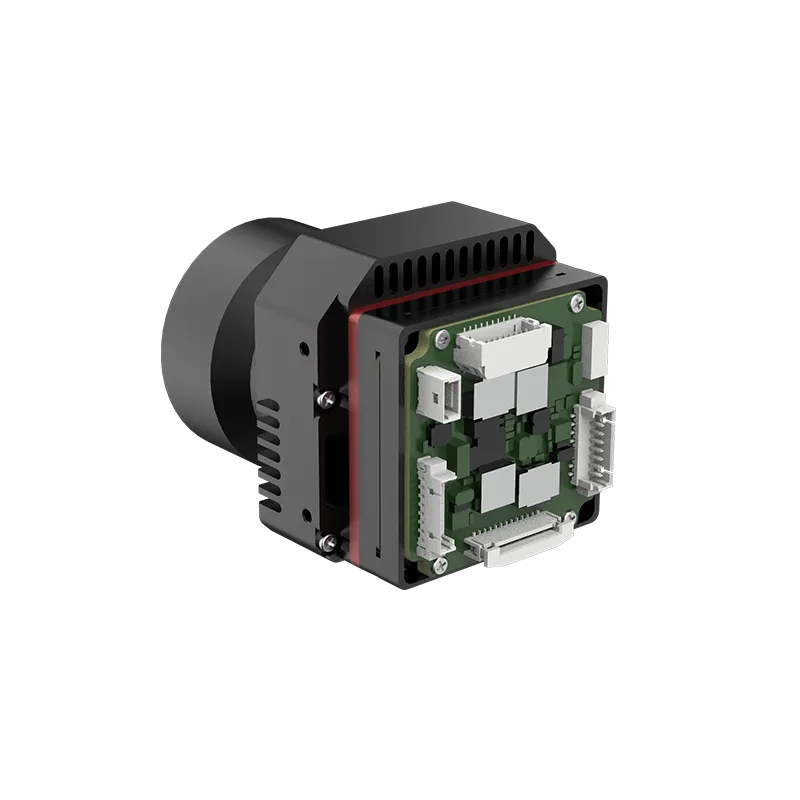

Turing MF384 Uncooled Infrared Module (Temperature Measurement)

China Moneypro
The Turing F384 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and high-accuracy temperature measurement algorithms.

The products can be widely used in application scenarios such as security monitoring, industrial temperature measurement, forest fire prevention, and rail transportation.

Feature

All Scenario and All Application

  • All-scenario accurate temperature measurement across a FOV ranging from 10° to 62°;
  • It supports both digital and network applications for all scenarios;

Stable, Precise, and Accurate

  • Efficient thermal balance, providing high-accuracy temperature measurement of ±2°C across a wide measurement range of -20°C to 650°C for the module, with precise adjustment based on target distance.
  • It can output a full array of temperature data to facilitate secondary temperature analysis.

Multiple Video Interfaces, Easy for Secondary Development

  • It provides various video output interface options including interfaces, BT.601, and BT.1120, with extensions for SDI, USB, Cameralink, and HDMI interfaces.
  • It provides multiple SDK, which are simple and easy to use, shortening the development cycle, improving efficiency, and reducing secondary development costs.

Specification

Performance Indicators
Detector TypeUncooled VOx infrared detector
Resolution384×288
Detector Frame Rate50 Hz
Pixel Pitch12μm
Spectral Band8~14μm
NETD≤40mK at 25℃, F#1.0
Image Adjustment
PaletteSupport (20 types)
Digital Zoom1.0~8.0× continuous zoom (step size: 0.1)
Image ProcessingNon-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment
MirroringHorizontal/Vertical/Diagonal
Network Function
Network ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.
Platform AccessModbus TCP, MQTT protocols, ONVIF, GB28181, and SDK.
Simultaneous Previewed VideosUp to 8 channels
User ManagementUp to 20 users, 3 levels: administrator, operator and user
BrowserGoogle, Firefox, Edge, etc.
Intelligent Functions
Intelligent VideoSupport
Intelligent AlarmSupport abnormality detection and linkage alarm for network cable disconnection, IP address conflict, memory error, and illegal access
Intelligent DetectionSupports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.
Alarm LinkageVideo taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output
Lens
Lens TypeAthermalized/Prime electric focus
Focus ModeManual/Automatic
Electric FocusingSupport
Electric Zooming/
Digital
Power Supply Range12V DC ±10%
Typical Power Consumption at 25°C＜1.5w
Digital VideoLVCMOS/BT.601/BT.1120
Communication InterfaceRS-232/UART
Network Type
Power Supply Range9-15V DC (Recommended voltage of 12V DC)
Typical Power Consumption at 25°C＜2.4w (Typical, @25°C)
Communication InterfaceOne RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART
Alarm Interface1-channel alarm input, 1-channel alarm output
Audio Interface1-channel audio input, 1-channel audio output
Interface
Analog Video1-channel PAL system
Environment Adaptability
Operating Temperature-40℃～+70℃
Storage Temperature-45℃～+85℃
Humidity5-95%, non-condensing
Product CertificationRoHS2.0
PTZ Function
Fire WarningSupports fire point detection.
Thermal Imaging
Measurement Range-20℃~﹢150℃, 0℃~﹢650℃
Measurement Accuracy±2°C or 2% (The greater shall prevail)at ambient temperature -20°C ~ +60°C
