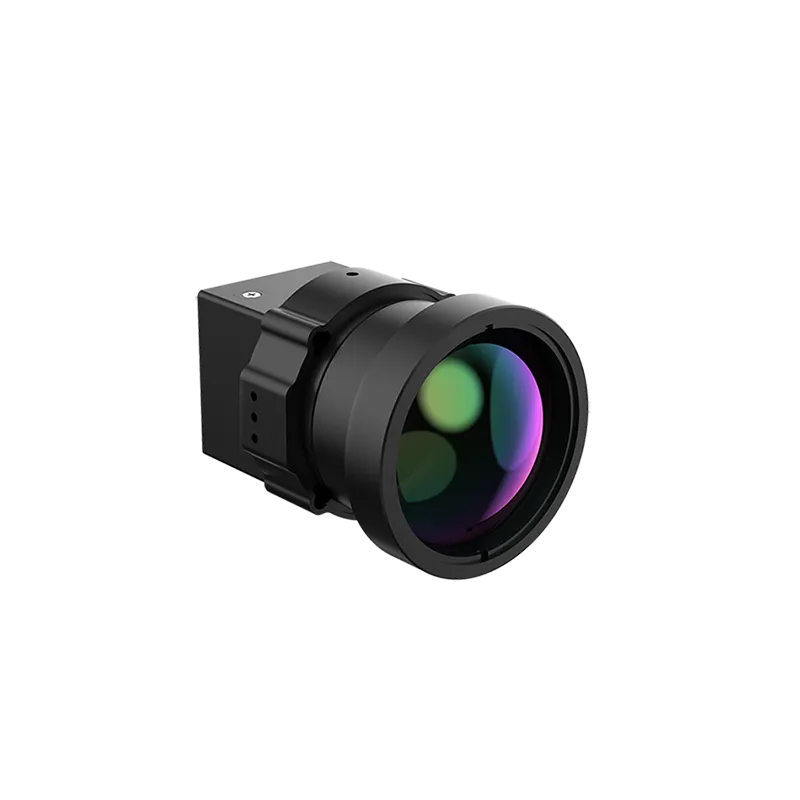

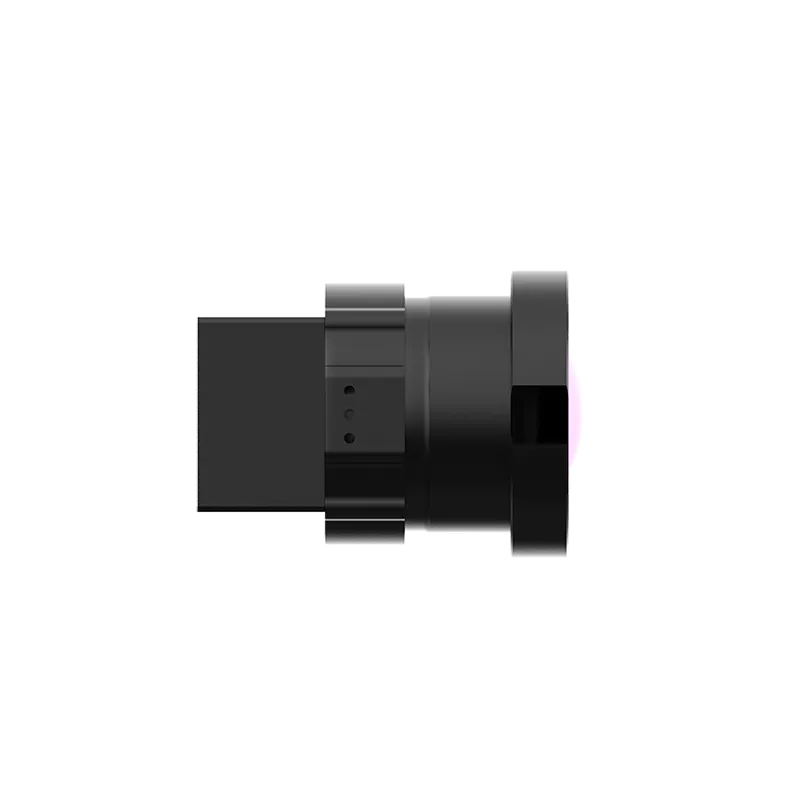

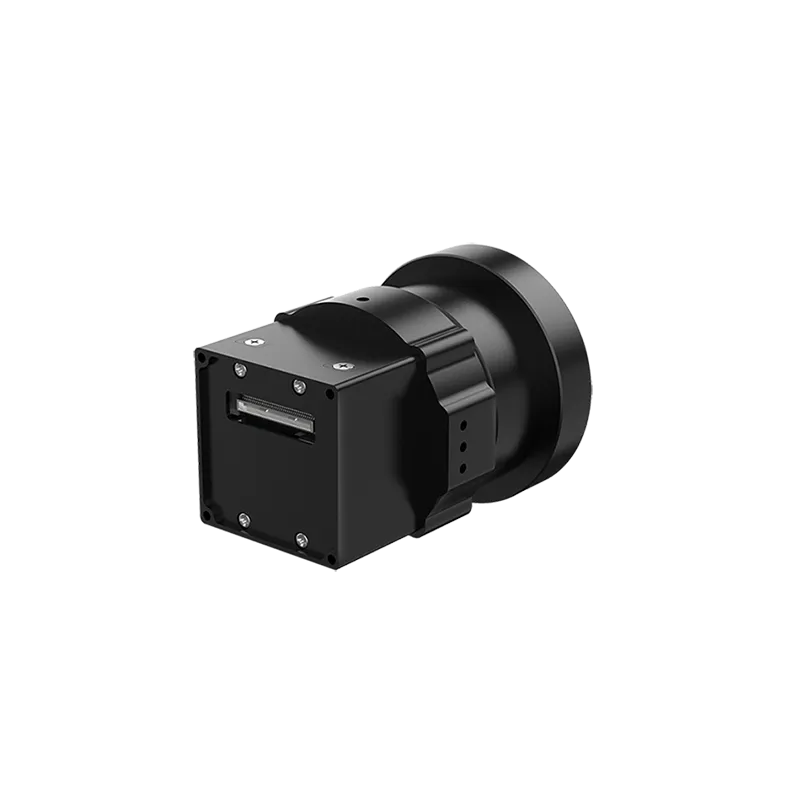

Turing ML1280 Uncooled Infrared Module (Imaging)
China Moneypro
The Turing ML1280 uncooled infrared module is a new generation of module components designed for expert users. The use of self-developed detectors has taken an important step forward in miniaturization and lightweighting, making us take a lead. With the advantage of large array imaging of 1280, the size is only 29mm×29mm, and the weight is only 24.5g. With a professional development team, it is the best choice for meeting the lightweight development needs.
Feature
Industry Solutions of Minimum 1,280
- Equipped with a self-developed 12μm VOx uncooled infrared detector. Resolution is 1,280×1,024, size is 29×29, and weight is 24.5g.
Excellent Performance
- The mega-pixel resolution, combined with high-quality image algorithms, highlights details.
- Convenient for users to find targets and monitor details
Rich Selection
- With multiple lenses optional, it can flexibly adapt to multiple scenarios.
- Dedicated support to help users choose the right lens for themselves, efficient and convenient.
Specification
| Performance Indicators | |
| Detector Type | Uncooled VOx infrared detector |
| Resolution | 1280×1024 |
| Detector Frame Rate | 30 Hz |
| Pixel Pitch | 12μm |
| Spectral Band | 8~14μm |
| NETD | ≤50mK at 25℃,F#1.0 |
| Image Adjustment | |
| Brightness/Contrast Adjustment | Manual/Automatic/Linear |
| Polarity | Black-hot/White-hot |
| Palette | Support |
| Image Processing | TEC-less temperature control algorithm, digital filtering noise reduction, and digital detail enhancement. |
| Mirroring | Horizontal/Vertical/Diagonal |
| Power Supply | |
| Power Supply Range (typical) | 4.0~5.5VDC, 4.1~5.5V DC supported by user extension components. |
| Typical Power Consumption at 25°C Without Extension | 0.9W |
| Interface | |
| Digital Video | 14Bit or 8Bit LVCMOS/MIPI, BT1120 |
| Extension Components | USB3.0 |
| Control Interface | UART（3.3V） |
| Temperature Measurement Performance | |
| Measurement Range | / |
| Measurement Accuracy | / |
| Measurement Tool | / |
| Physical Characteristics | |
| Dimensions (Without lens and extension components) | 29mm × 29 mm × 18.9mm |
| Weight (3.2mm, without extension components) | 24.5g |
| Lens Model | 10mm,35mm,50mm,75mm |
| Environment Adaptability | |
| Operating Temperature | -40℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5~95%, non-condensing |
| Product Certification | RoHS2.0 |
| Product Certification | RoHS |
Application Scenariosa

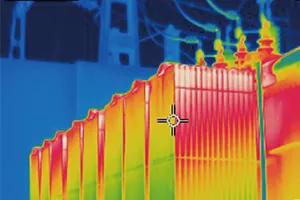

Industrial Temperature Measurement
Security Monitoring
UAV Pod
Machine Vision
