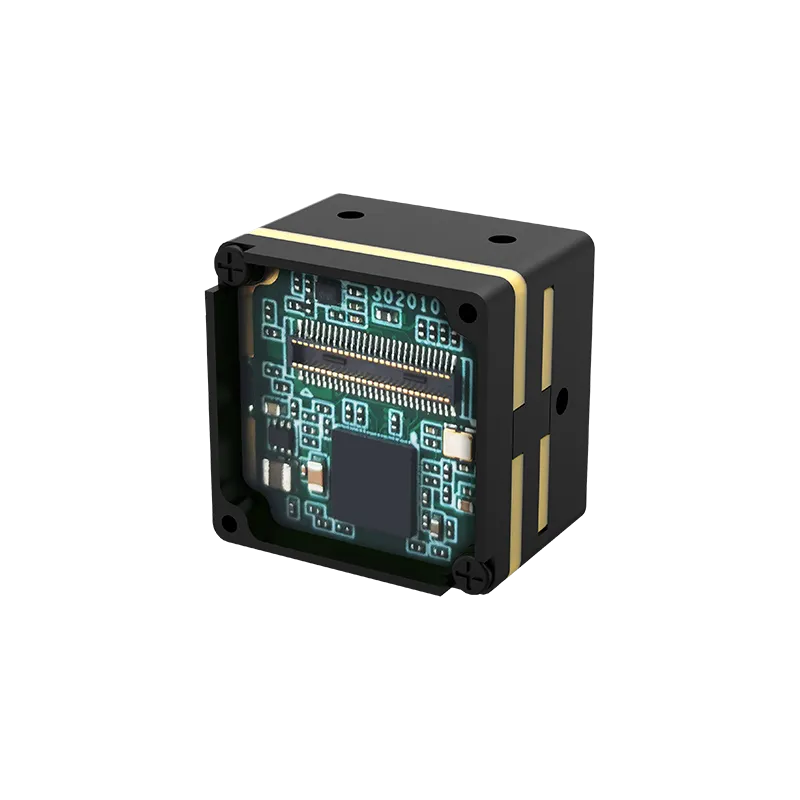

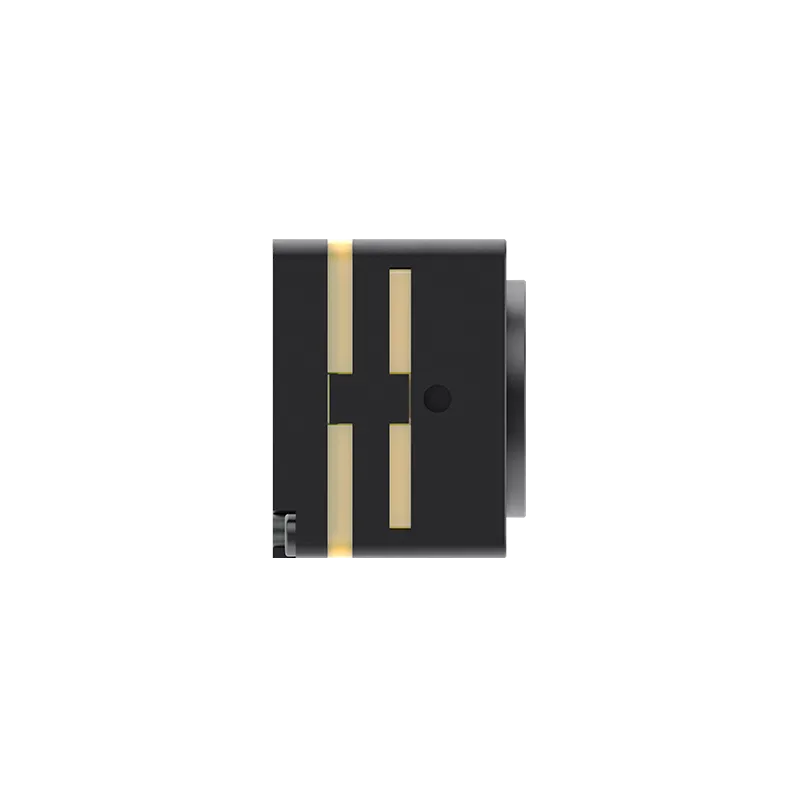

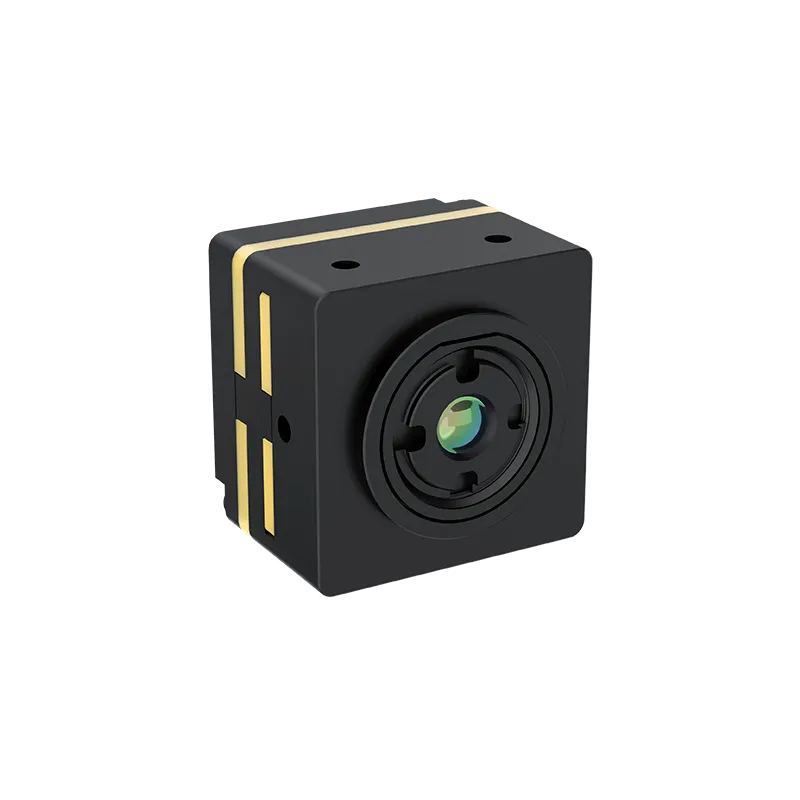

Turing ML256 Uncooled Infrared Module (Temperature Measurement)

China Moneypro
Turing ML256 uncooled infrared module is equipped with an advanced 256×192 wafer detector with a dimension of 18×18mm. Thanks to its integrated design, it redefines standards in weight, dimension and power consumption (SWaP³) in the OEM module industry. As the best choice for low-cost solutions, it can be used in many fields such as industry, power, security, and machine vision.

Feature

Compatibility Design

  • Its resolution is 256×192 and dimension is 18mm×18mm, which are consistent with those of the L384 mechanical interface for compatibility design.

Excellent Performance

  • -20°C~+550°C wide measurement range to satisfy application requirements in different scenarios.

Multiple Selections

  • The FOV is 20°~90° and the extension supports DVP/USB.

Specification

Performance Indicators
Detector TypeUncooled VOx infrared detector
Resolution256×192
Frame Rate25 Hz
Pixel Pitch12μm
Spectral Band8~14μm
NETD≤50mK@25°C
Image Adjustment
Brightness/Contrast AdjustmentManual/Auto
PolarityBlack-hot/White-hot
PaletteIt supports multiple types
ReticleDisplay/Blank/Move
Image ProcessingDigital filtering noise reduction/Digital detail enhancement
MirroringHorizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical)3.8~5.2V DC/1.8V/3.3V
Typical Power Consumption at 25°C Without Extension≤0.3W
Interface
Digital VideoCDS3
Serial Communication InterfaceUART
Extension ComponentsUSB2.0
Temperature Measurement Performance
Measurement RangeTemperature measurement series: -20℃～+550℃
Measurement AccuracyFor measurement series, ±3°C or ±3% of reading (The greater shall prevail) @Ambient temperature of -20°C~+60°C
Physical Characteristics
Dimensions (Without lens and extension components)18×18mm
Weight (3.2mm, without extension components)About 8.7g
Lens Model2mm, 3.2mm, 7mm, 10mm, and 13mm
Environment Adaptability
Operating Temperature-20℃～60℃
Storage Temperature-45℃～+85℃
Humidity5 ~ 95%, non-condensing
Product CertificationRoHS2.0

Application Scenariosa

UAV
Security Monitoring

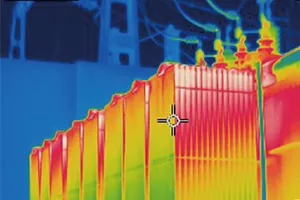

Industrial Temperature Measurement
Machine Vision
