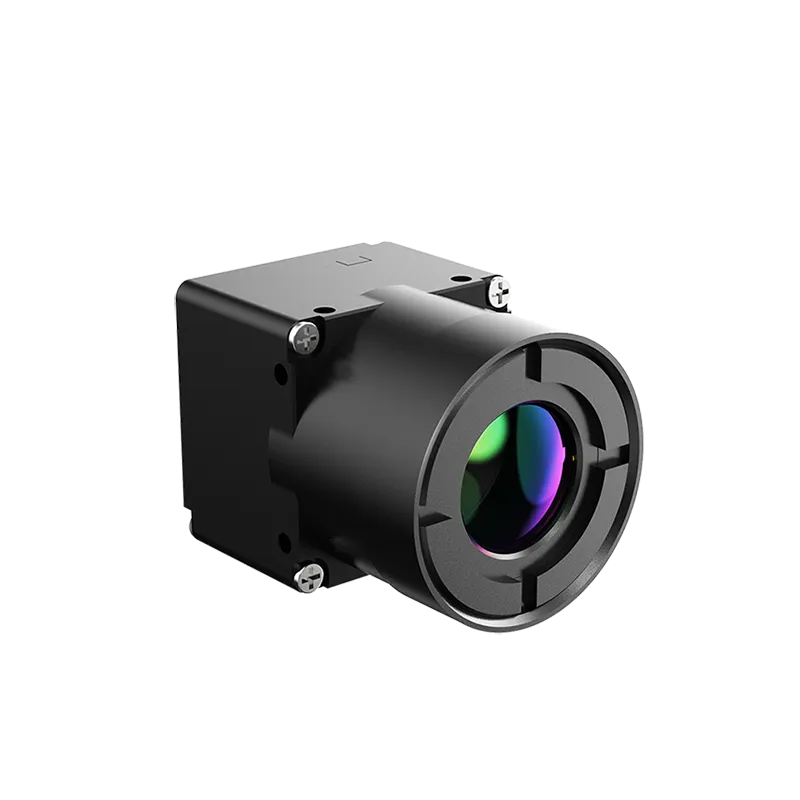

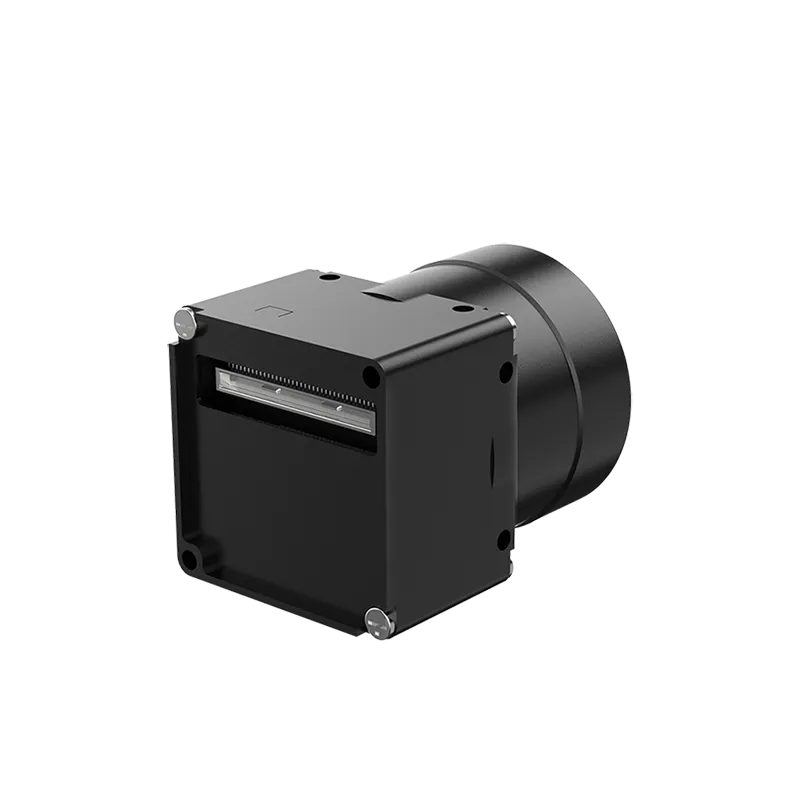

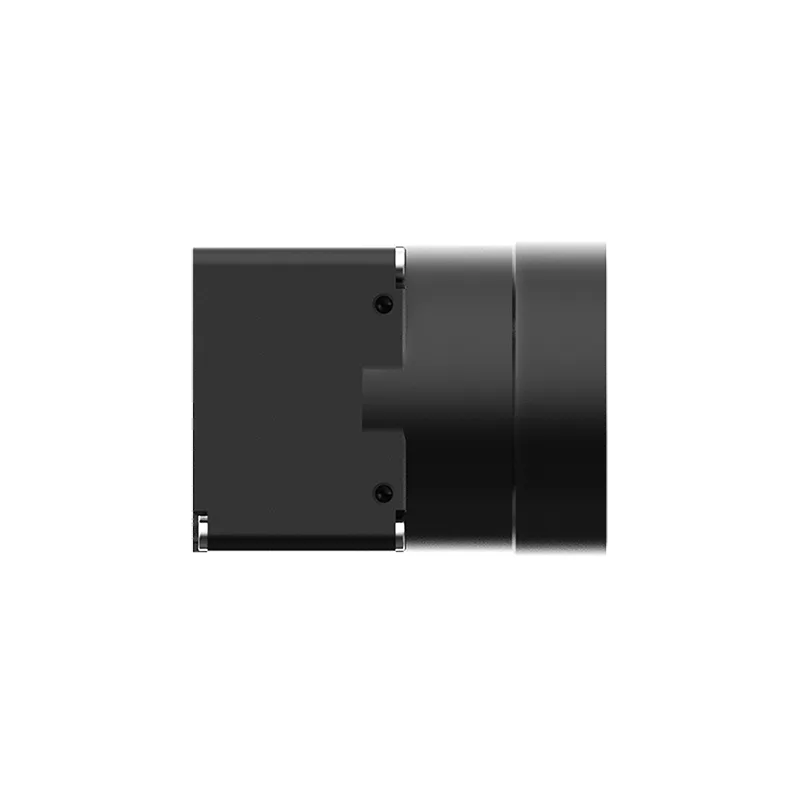

Turing ML640 Uncooled Infrared Module (Temperature Measurement)
China Moneypro
The Turing ML640 uncooled infrared module is specifically designed for applications where dimensions and power consumption are critical concerns.
Featuring extreme compactness, lighter weight and lower power consumption, it supports multiple parallel communication and video output interfaces, and provides various lightweight infrared lenses.
This series of imaging-type products can provide comprehensive infrared imaging solutions for a variety of photoelectric products including small handheld telescopes, helmet night vision devices, light-type unmanned aircraft systems, and driving assistance devices.
Products for temperature measurement can be applied in many fields like industrial and electrical temperature measurement, security measurement, and machine vision.
Featuring extreme compactness, lighter weight and lower power consumption, it supports multiple parallel communication and video output interfaces, and provides various lightweight infrared lenses.
This series of imaging-type products can provide comprehensive infrared imaging solutions for a variety of photoelectric products including small handheld telescopes, helmet night vision devices, light-type unmanned aircraft systems, and driving assistance devices.
Products for temperature measurement can be applied in many fields like industrial and electrical temperature measurement, security measurement, and machine vision.
Feature
SWaP3 Design
- Its resolution is 640×512, dimension is 21×21mm, and weight is 8g. It meets the application requirements of infrared lightweight.
Excellent Performance
- It adopts high-quality image algorithms, providing multiple details regardless of smoke and darkness.
- With a measurement range spanning from -20℃ to 650℃, this device offers a precise and rapid temperature assessment algorithm, providing accurate readings immediately upon powering on.
Multiple Selections
- FOV covers 10-130°
- It supports multiple interfaces, such as MIPI, USB, BT.656, and analog video.
- Equipped with leading programmable modules, it features flexible architecture, multiple functions, and high customizability.
Specification
| Performance Indicators | |
| Detector Type | Uncooled VOx infrared detector |
| Resolution | 640×512 |
| Detector Frame Rate | 25 Hz |
| Pixel Pitch | 12μm |
| Spectral Band | 8~14μm |
| NETD | ≤50mK at 25°C (≤40mK, optional) |
| Image Adjustment | |
| Brightness/Contrast Adjustment | Manual/Automatic/Linear |
| Polarity | Black-hot/White-hot |
| Palette | Support |
| Reticle | Display/Blank/Move |
| Image Processing | TEC-less temperature control algorithm.Digital filtering noise reduction / digital detail enhancement / histogram stretching |
| Mirroring | Horizontal/Vertical/Diagonal |
| Power Supply | |
| Power Supply Range (typical) | 3.8～5.2VDC / 1.8V / 3.3V |
| Typical Power Consumption at 25°C Without Extension | 0.35W (Typical, @25°C, Without Extension) |
| Interface | |
| Digital Video | CDS2/CDS3/LVCMOS/MIPI |
| Serial Communication Interface | UART/I2C (optional) |
| Extension Components | USB2.0 / Analog video |
| Temperature Measurement Performance | |
| Measurement Range | For measurement series, -20°C~+150°C, 0℃~+650°C |
| Measurement Accuracy | For temperature measurement series, ±3°C or ±3% at ambient temperature of -20°C~+60°C (±2°C optional) |
| Measurement Tool | Secondary analysis of points, lines, and areas |
| Physical Characteristics | |
| Dimensions (Without lens and extension components) | 21×21mm |
| Weight (3.2mm, without extension components) | 8g |
| Lens Model | 4.1mm, 6.9mm, 9.1mm, 13mm, 25mm, and 45mm |
| Environment Adaptability | |
| Operating Temperature | -40°C~+80°C (-20°C~60°C measurement) |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5 ~ 95%, non-condensing |
| Product Certification | RoHS |
Application Scenariosa

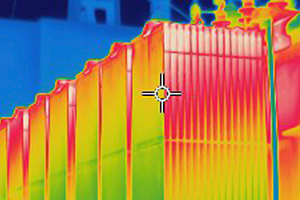

Industrial Temperature Measurement
Security Monitoring

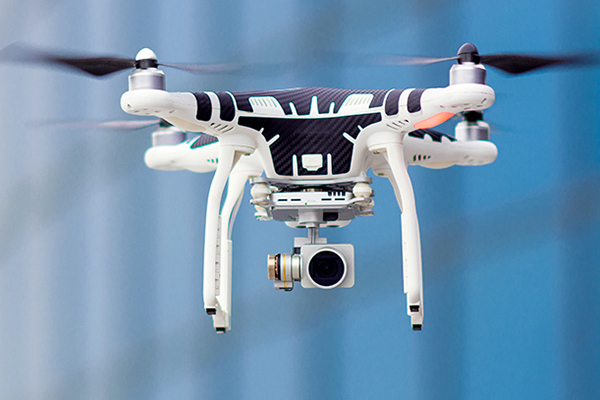

UAV Pod

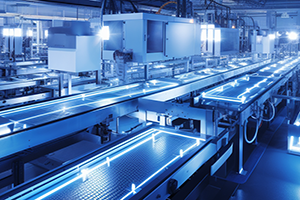

Machine Vision
